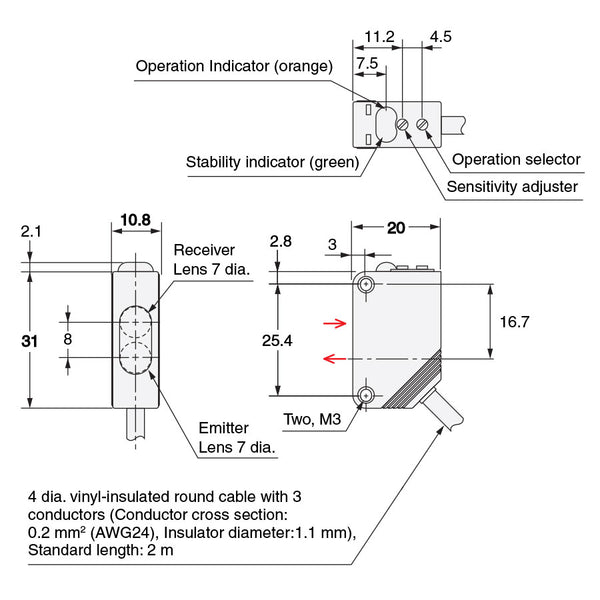

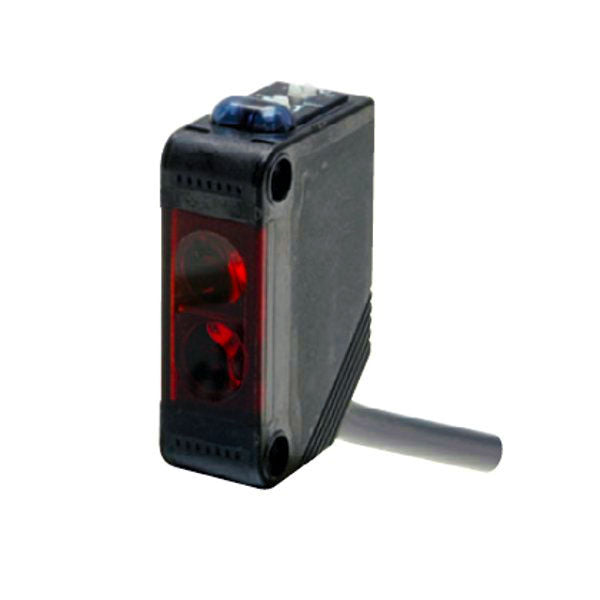

Diffuse Reflective Sensor - Infrared, Long Range (1m max. Sensing Distance) for Part Ejection

2318301
Regular price $176.00 $0.00 Unit price per

This 1 meter range infrared Diffuse Reflective Photosensor is the most commonly used sensor for detecting part ejection.  This sensor uses infrared (as opposed to visible) light, making it ideal for use in oily environments such as stamping dies.

It’s a reflective sensor - the emitter and receiver are in the same housing, aimed in the same direction.   The emitter sends out a cone-shaped field of infrared light.  The receiver only needs to detect a very small amount of light from the emitter for the sensor to actuate, allowing the diffuse reflective photosensor to easily detect small, fast-moving, even non-reflective objects.

The infrared light source is less apt than visible light to generate false actuations caused by oil in the sensing field, making it ideal for detecting air-ejected parts.

Specifications:

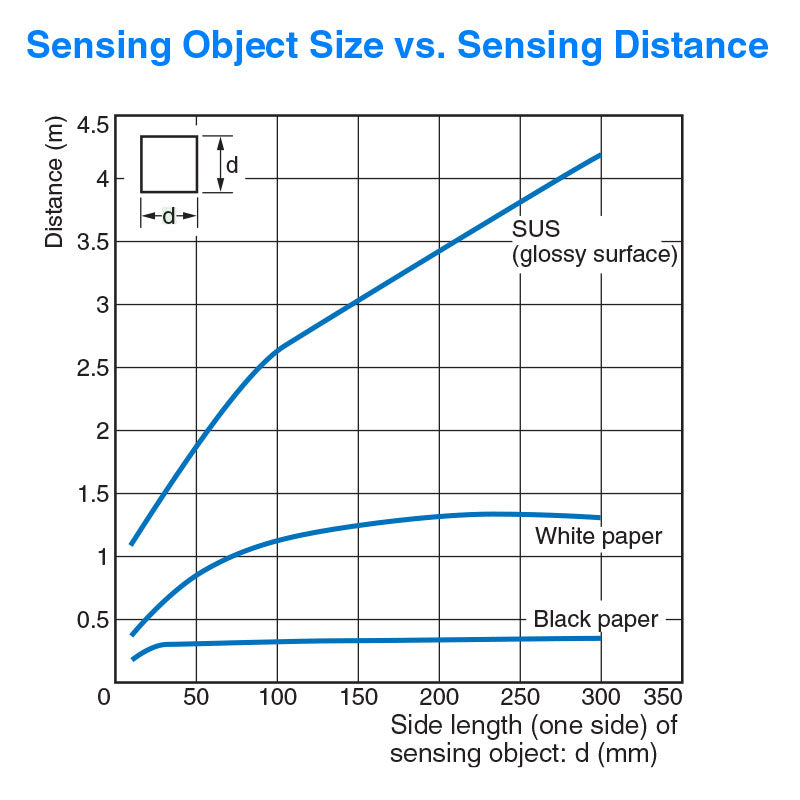

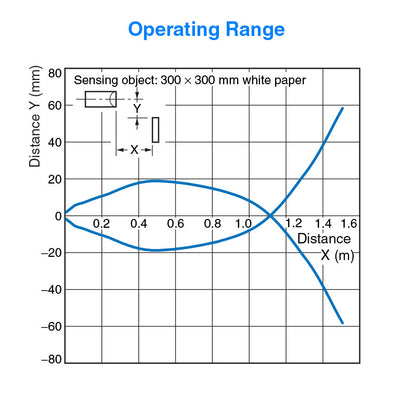

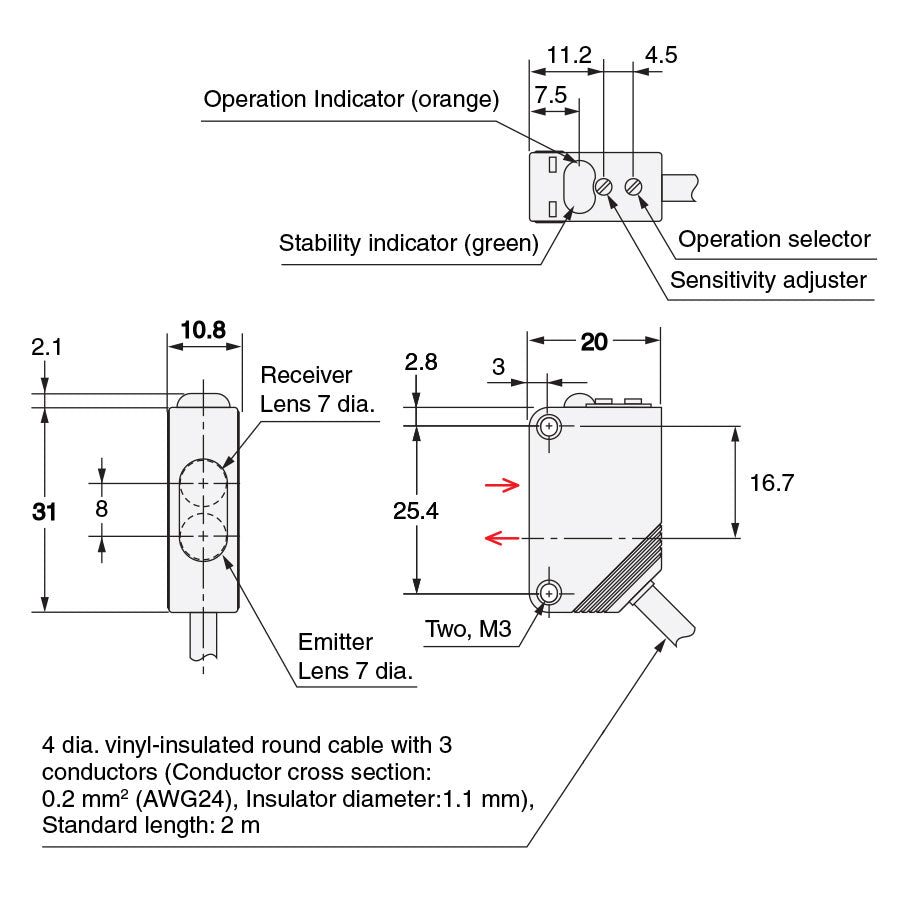

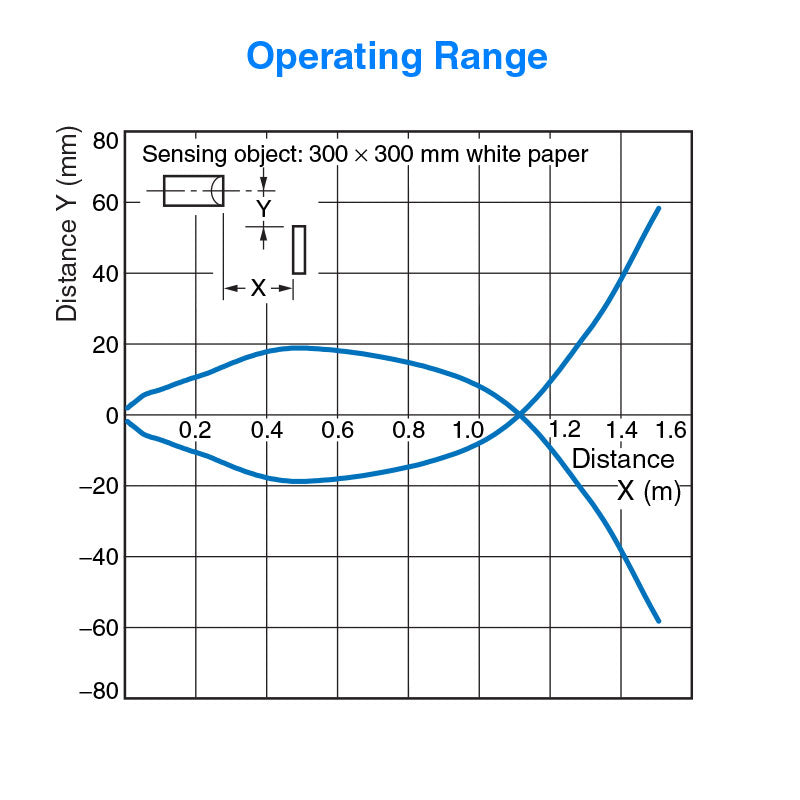

Sensing distance 1 m  (white paper: 300 x 300 mm)
Light source (wavelength) Infrared LED (860 nm)
Sensitivity adjustment One-turn adjuster
Indicators Operation indicator (orange) Stability indicator (green)
Through-beam Emitter has power indicator (orange) only.
Response time Operate or reset: 1 ms max.
Degree of protection IEC, IP67
Connection method Pre-wired 2 m cable
Power supply voltage 12 to 24 VDC +/- 10%, ripple (p-p): 10% max.
Current consumption 30 mA max.
Control output Load power supply voltage: 26.4 VDC max., Load current: 100 mA max. Residual voltage:  Load current of less than 10 mA: 1 V max.
Load current of 10 to 100 mA: 2 V max.

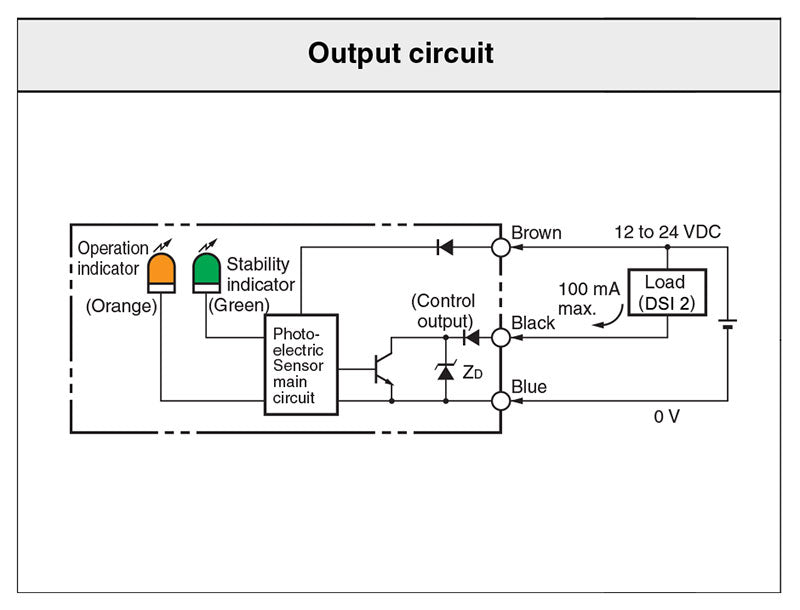

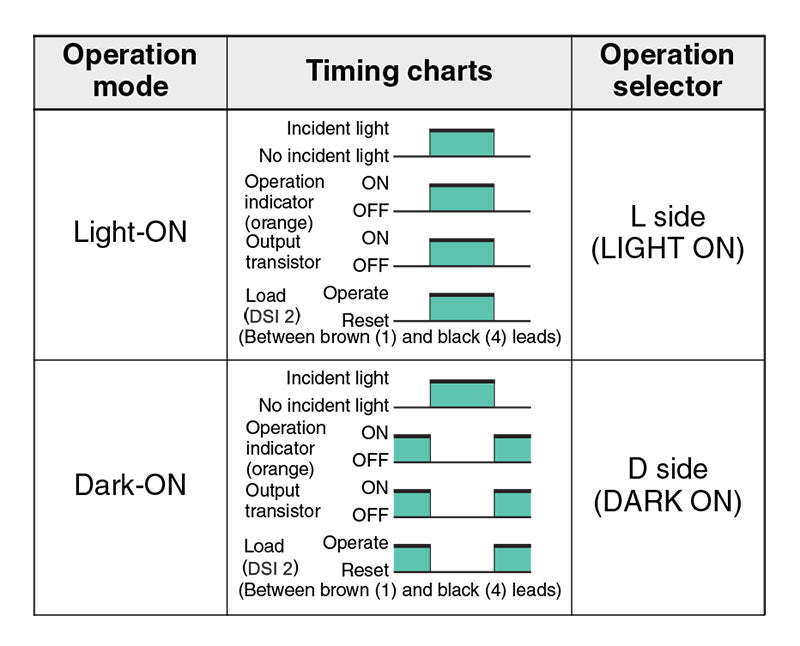

Open collector output (NPN/PNP depending on model) Light-ON/Dark-ON selectable
Protection circuits Reversed  power polarity, output short-circuit,  and reversed output polarity protection, and mutual interference prevention,
Max. Ambient illumination Incandescent lamp: 3,000 lx max. Sunlight: 10,000 lx max.
Ambient temperature range Operating: -25⁰ to 55⁰C (with no icing or condensation) Storage: -40⁰ to 70⁰C (with no icing or condensation)
Ambient humidity range Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
Insulation resistance 20 MΩ min. at 500 VDC
Dielectric strength 1,000 VAC, 50/60 Hz for 1 min
Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance Destruction: 500 m/s3 times each in X, Y, and Z directions
Weight (packed) Approx. 65 g
Case Material PBT (polybutylene terephthalate)
Lens Material Modified polyarylate



This diffuse reflective photosensor is compatible with the following connection hardware:

You can also use the standard sensor connector to connect to the front panel of the Wintriss DSI 2.

These photosensors can be used with the following Wintriss Controllers:

This photosensor may also be compatible with some legacy Wintriss products.  Contact the factory for details.
