The Wintriss Store

Distance-Settable Reflective Sensor - Visible Light, 20 to 80 mm Sensing Distance - For detecting parts near a background

2319401
$275.00 $0.00

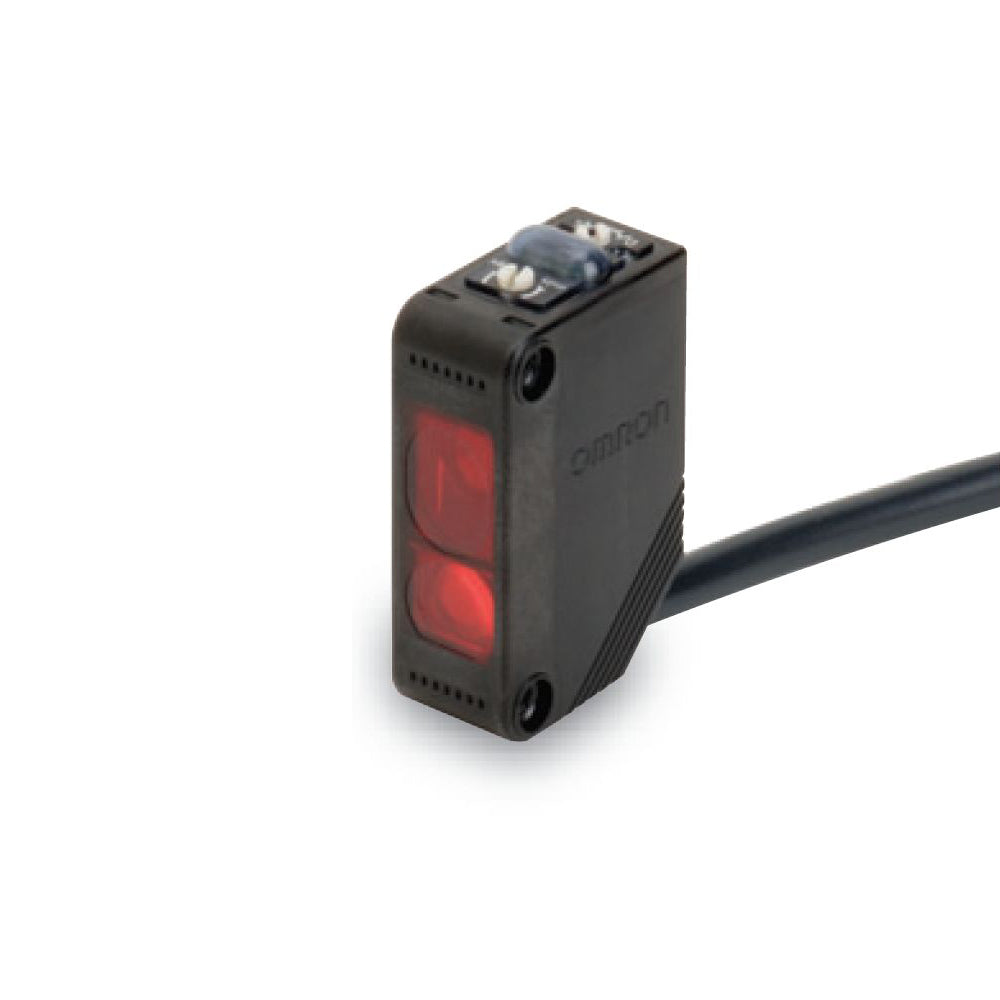

The Distance-Settable Reflective Photosensor is useful for detecting objects near a background, without detecting the background itself.  The sensing distance is adjustable from a minimum of 20mm to a maximum of 80mm.  The emitter light source is a red LED, which provides a visible aiming spot to aid in installation.

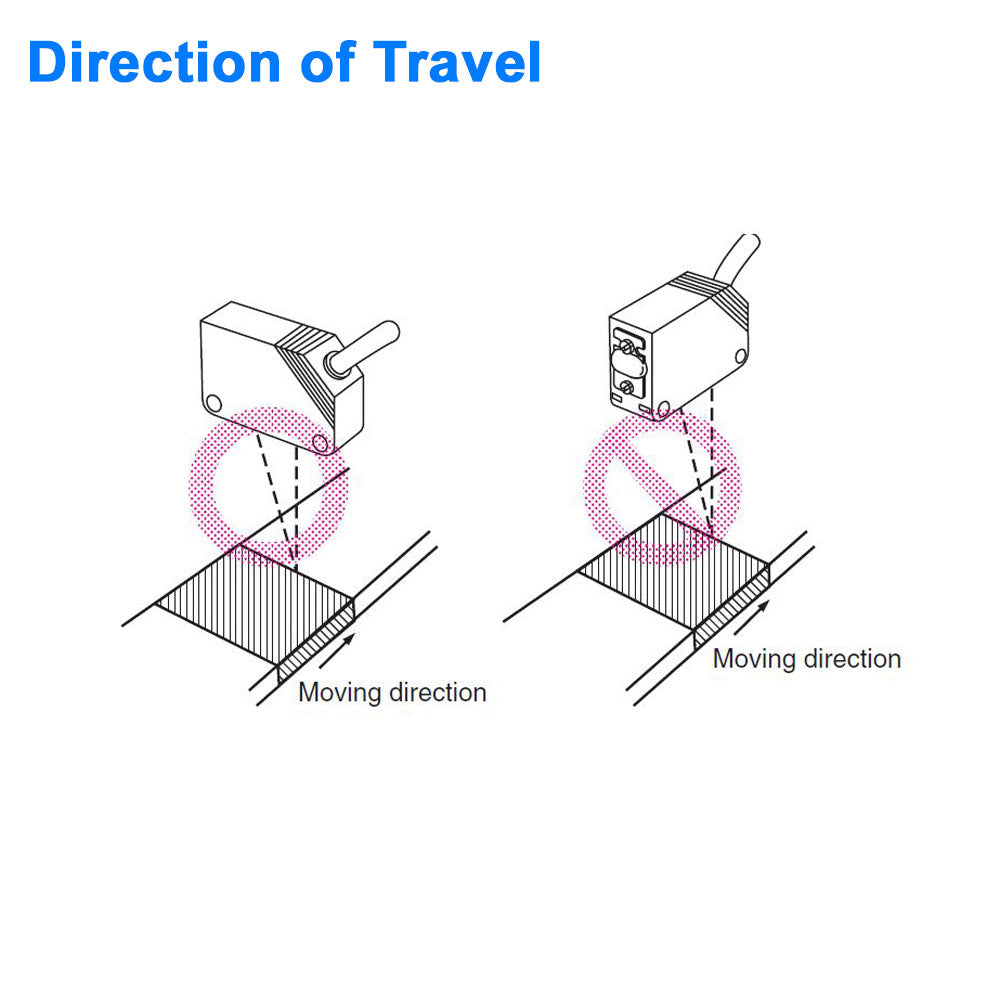

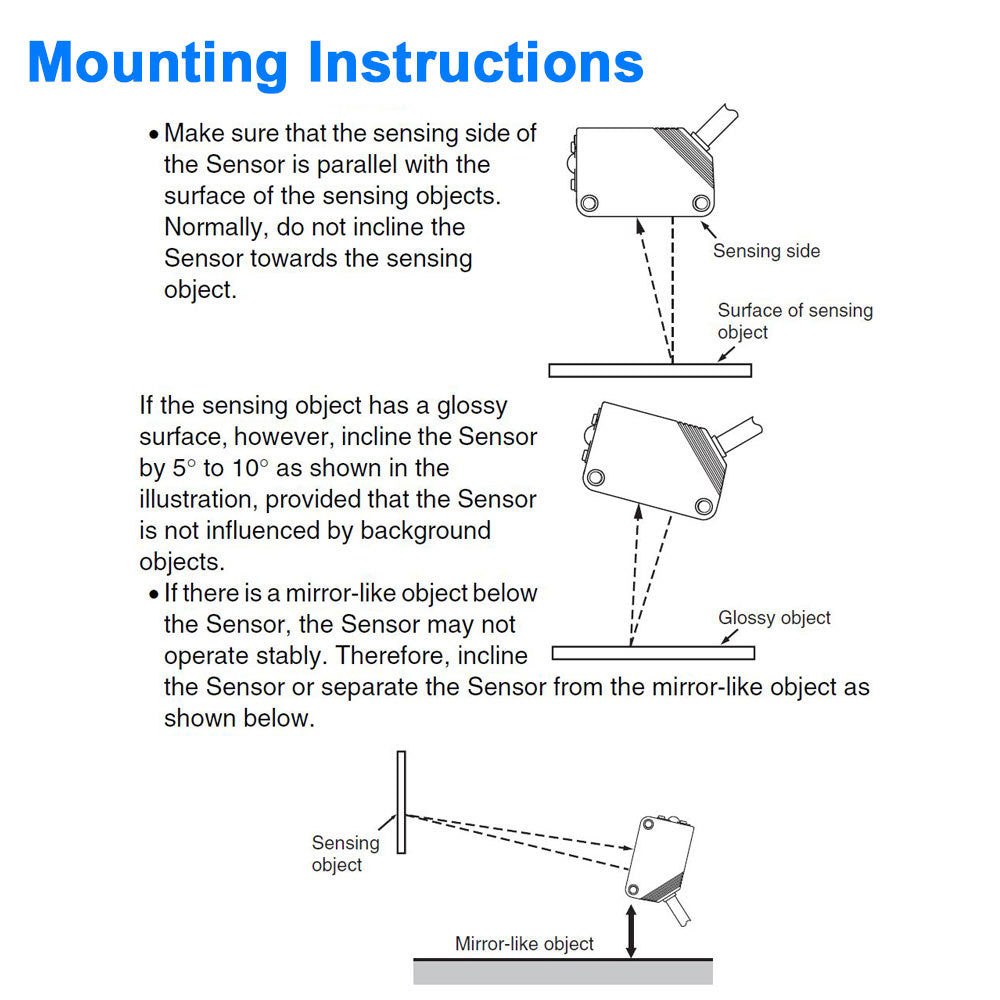

It’s a reflective sensor - the emitter and receiver are in the same housing, aimed in the same direction, but angled slightly toward the center of the sensor.   The slight angle provides the sensor with the ability to use triangulation to "tune out" background objects.



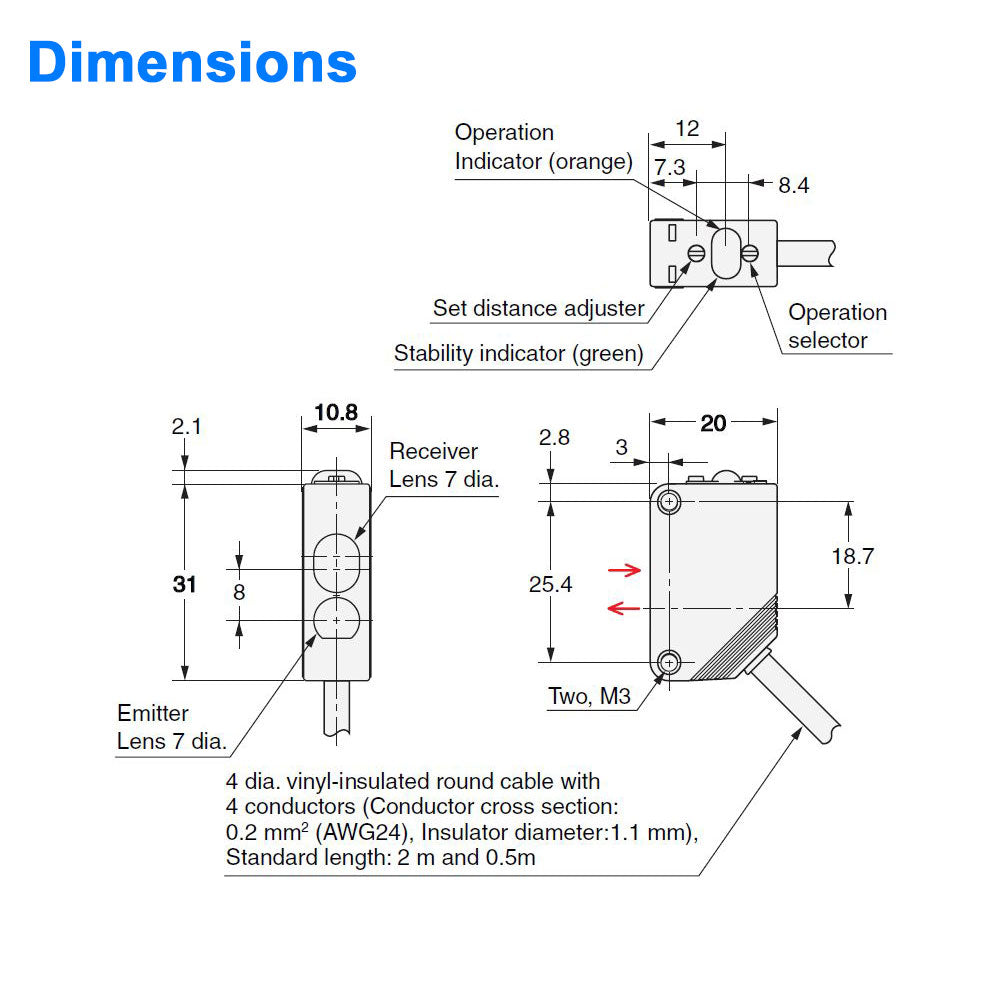

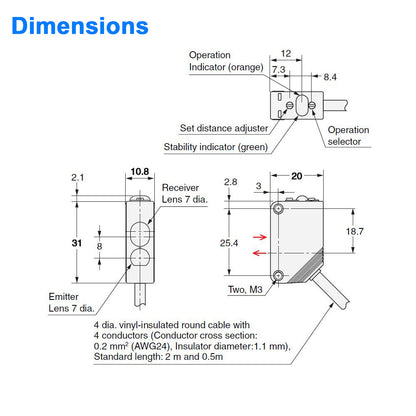

Specifications:

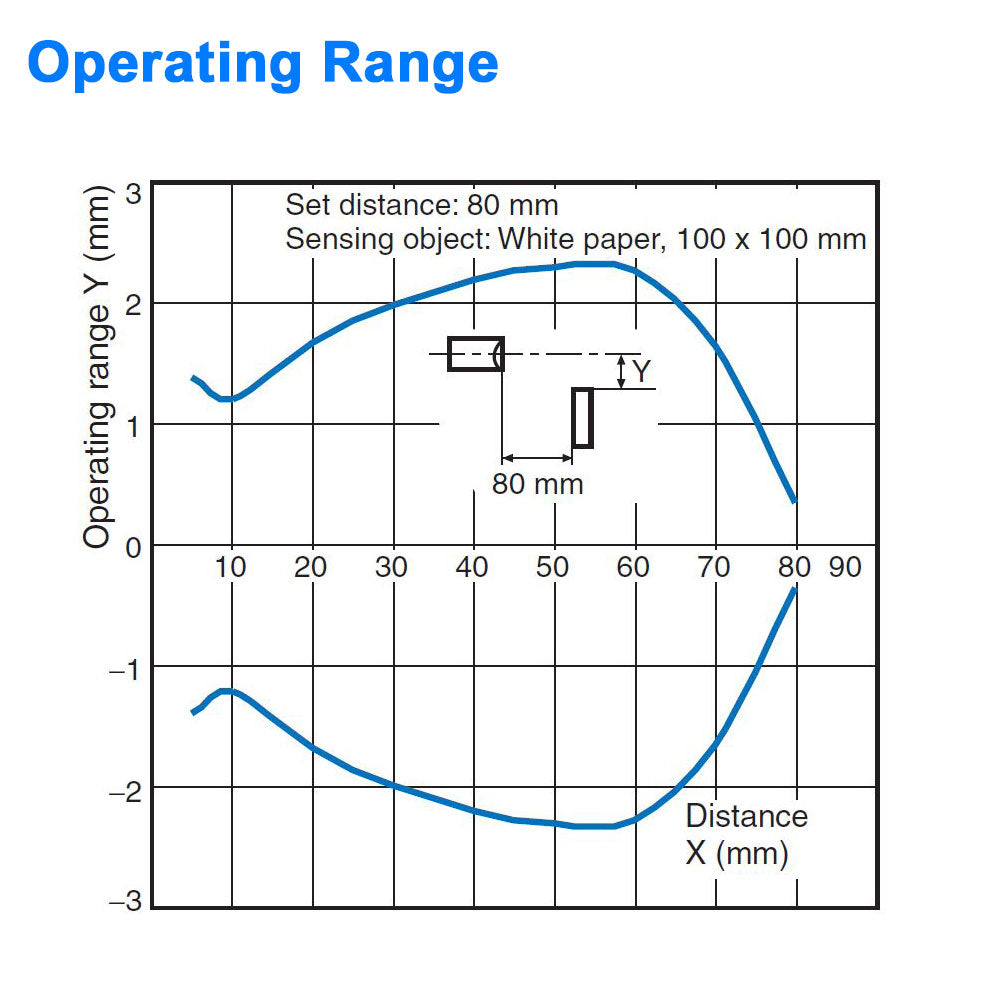

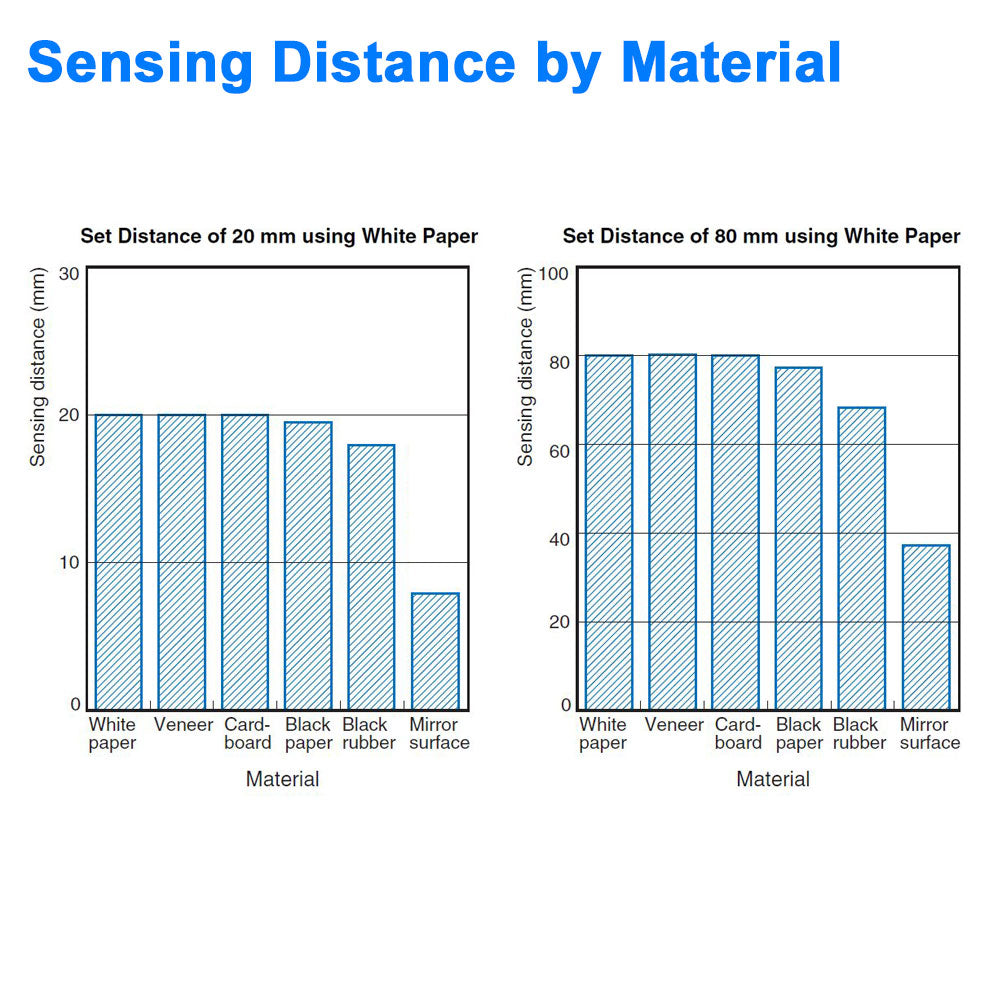

Sensing distance 20 mm  to set distance (80 mm max.)
Light source (wavelength) Red LED (680 nm)

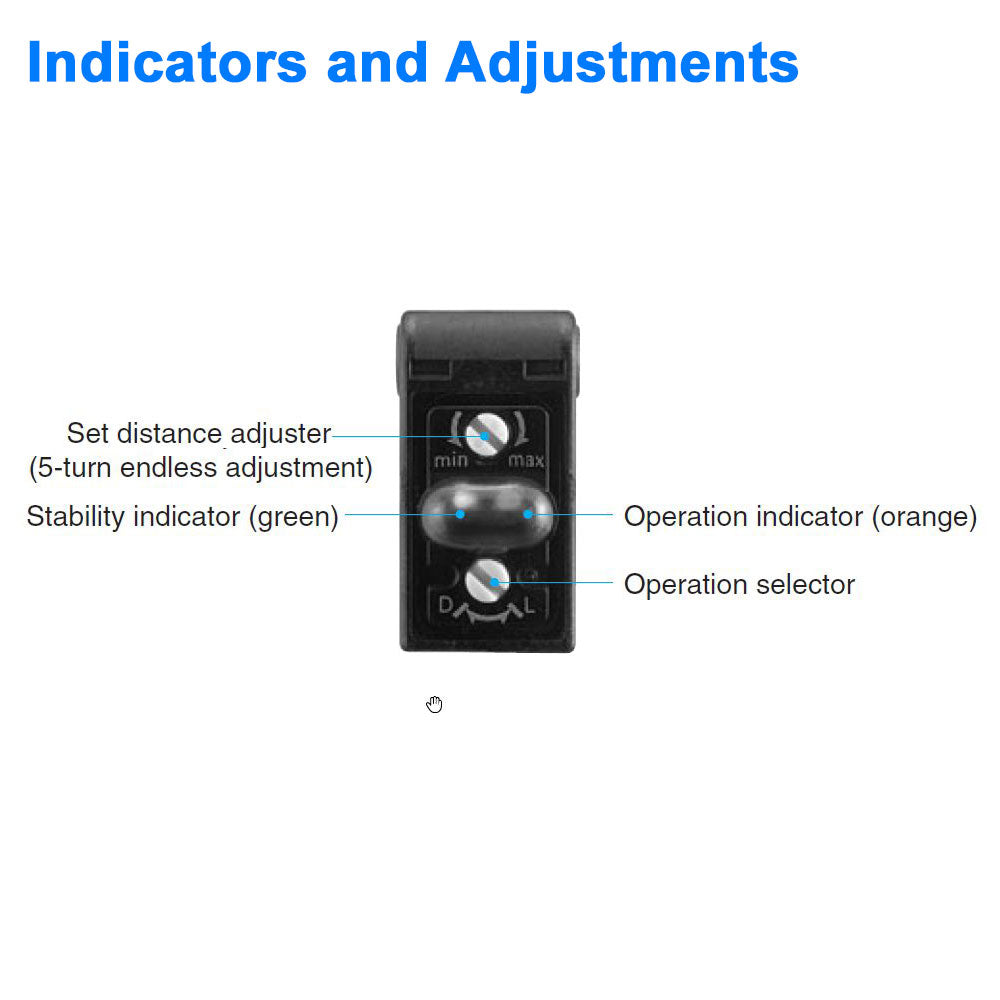

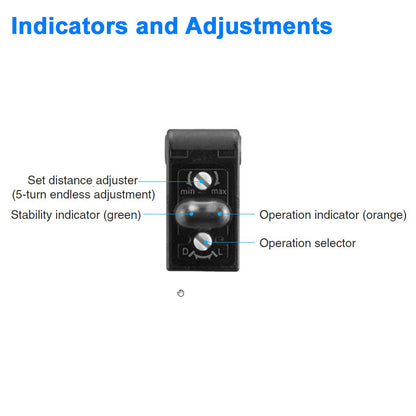

Sensitivity adjustment Five-turn endless adjuster

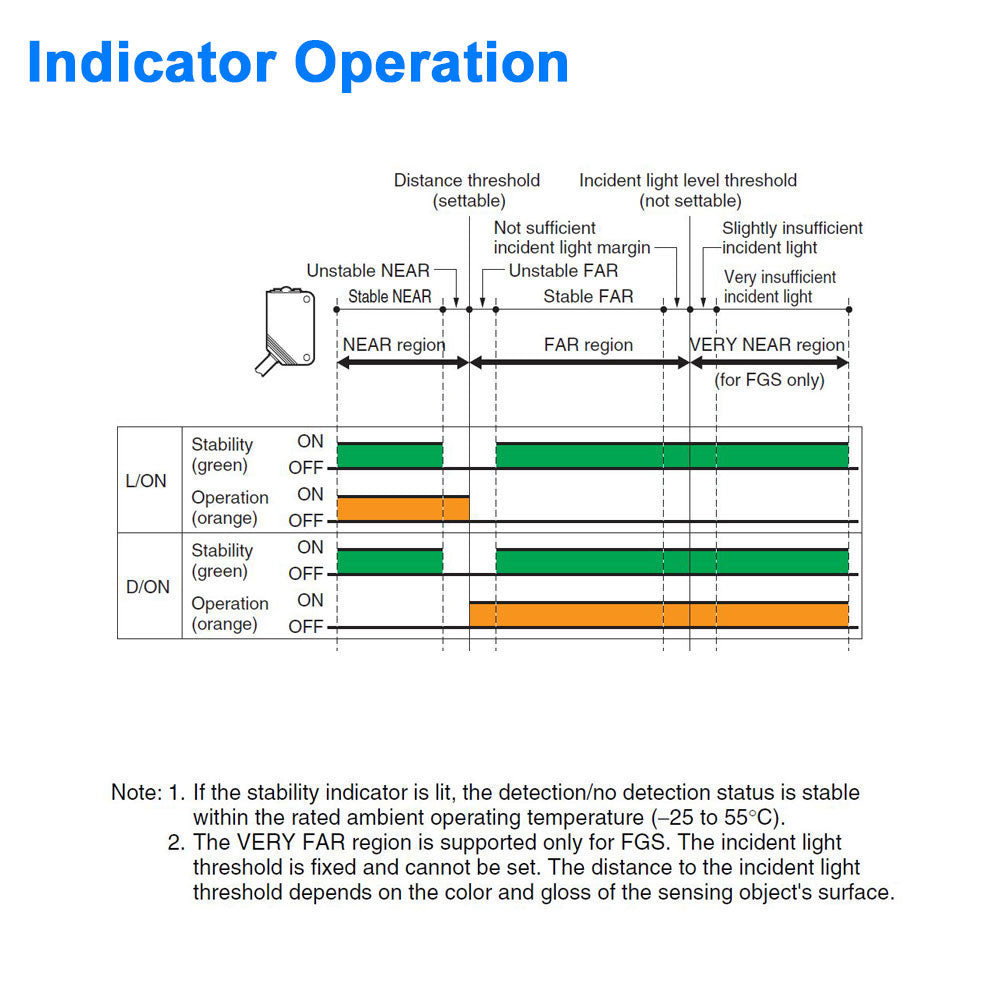

Indicators Operation indicator (orange) Stability indicator (green)
Response time Operate or reset: 1 ms max.
Degree of protection IEC, IP67
Connection method Pre-wired 2 m cable
Power supply voltage 12 to 24 VDC +/- 10%, ripple (p-p): 10% max.
Current consumption 30 mA max.

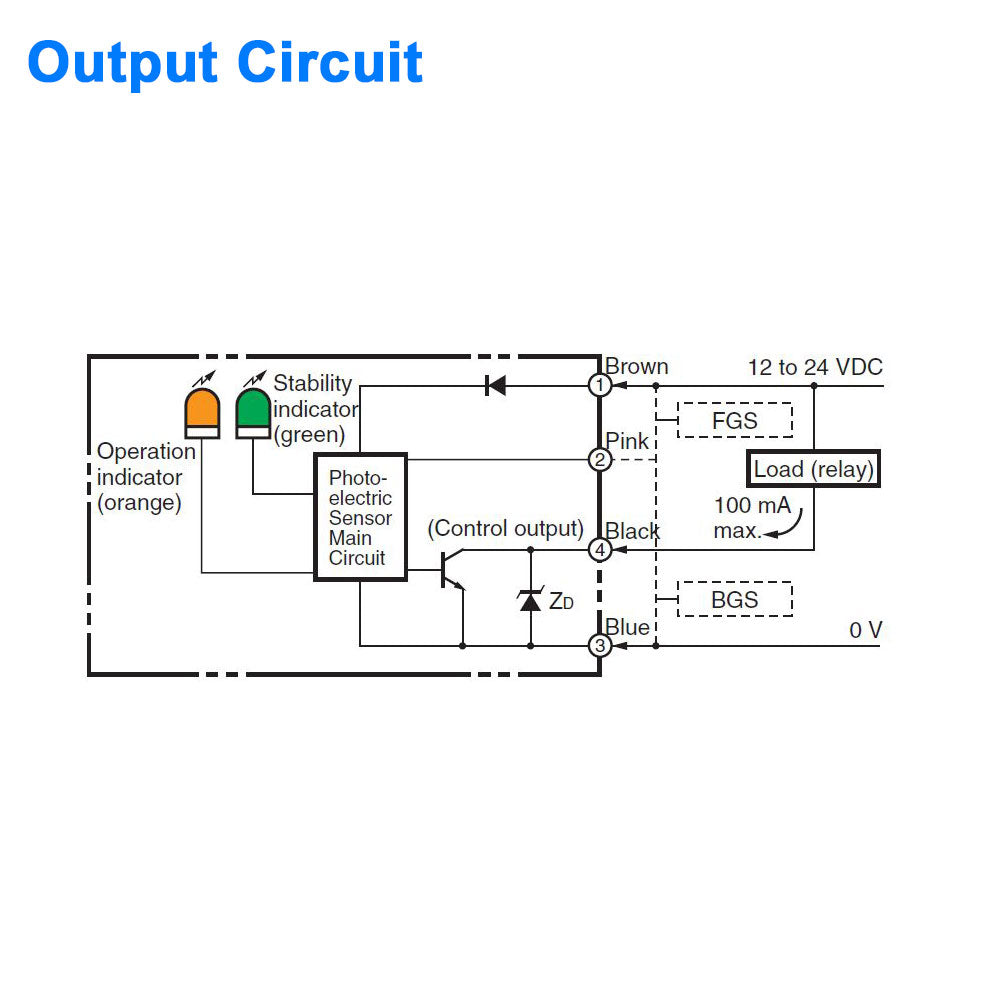

Control output Load power supply voltage: 26.4 VDC max., Load current: 100 mA max. Residual voltage: 1 V max.
Load current of 10 to 100 mA: 2 V max.

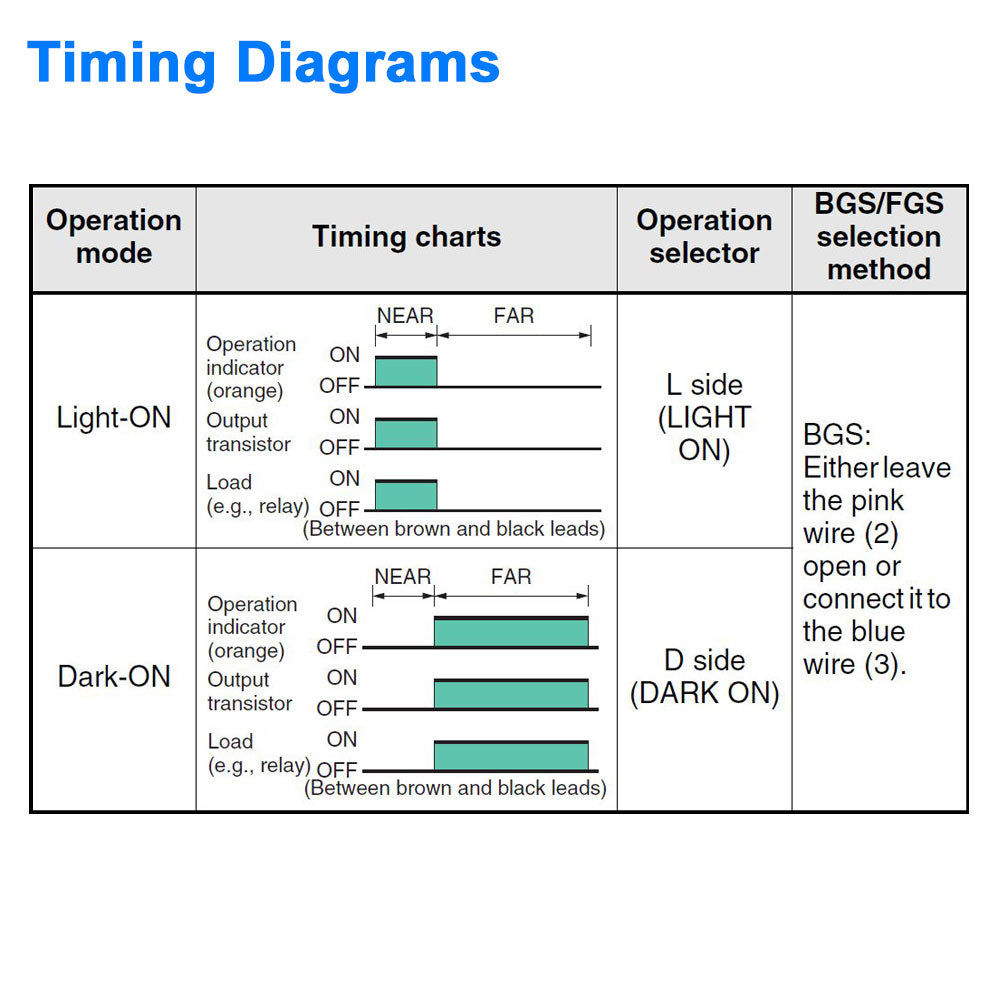

Open collector output (NPN) Light-ON/Dark-ON selectable
Protection circuits Reversed  power polarity, output short-circuit,  and reversed output polarity protection, and mutual interference prevention,
Max. Ambient illumination Incandescent lamp: 3,000 lx max. Sunlight: 10,000 lx max.
Ambient temperature range Operating: -25⁰ to 55⁰C (with no icing or condensation) Storage: -40⁰ to 70⁰C (with no icing or condensation)
Ambient humidity range Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
Insulation resistance 20 MΩ min. at 500 VDC
Dielectric strength 1,000 VAC, 50/60 Hz for 1 min
Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance Destruction: 500 m/s2  3 times each in X, Y, and Z directions
Weight (packed) Approx. 65 g
Case Material PBT (polybutylene terephthalate)
Lens Material Modified polyarylate



This sensor is compatible with the following connection hardware:

You can also use the standard sensor connector to connect to the front panel of the Wintriss DSI 2.

These sensors can be used with the following Wintriss Controllers:

This sensor may also be compatible with some legacy Wintriss products.  Contact the factory for details.
