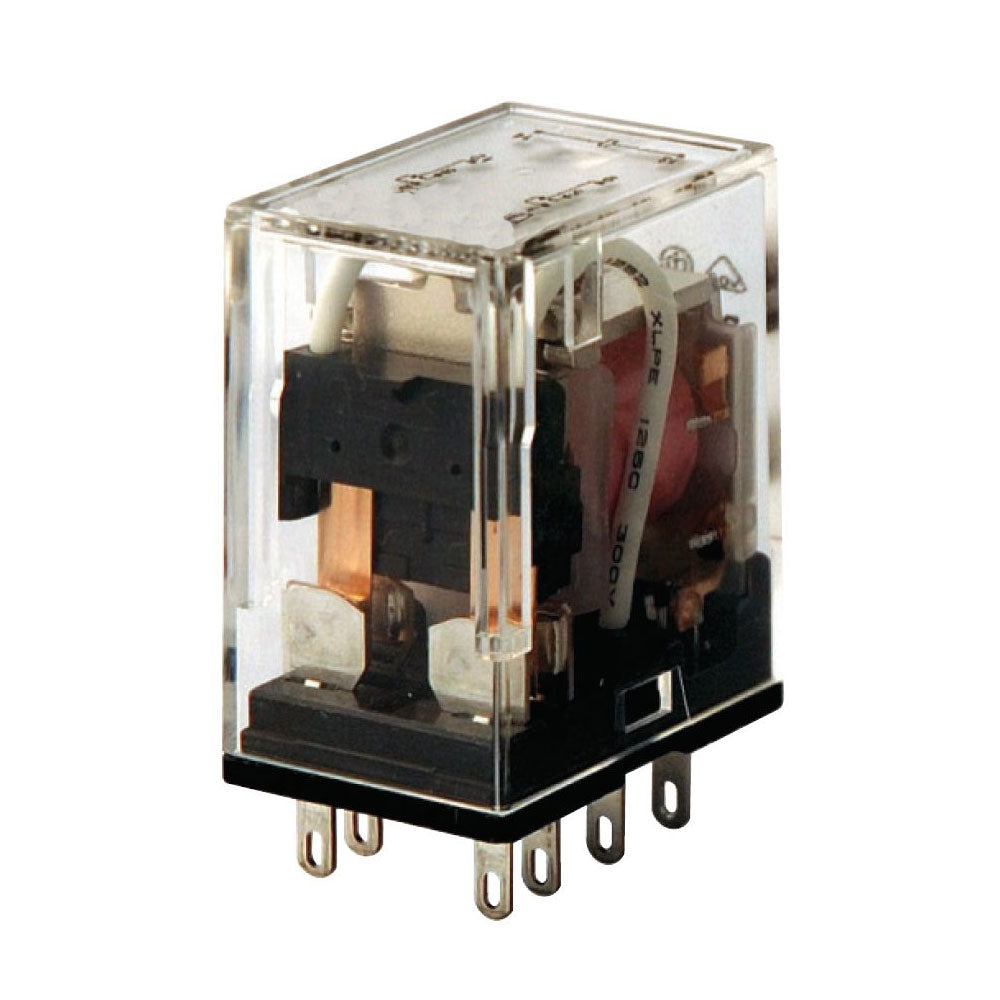

General Purpose Relay - DPDT 24 VDC Coil
2319801
Regular price
$67.00
This general purpose DPDT relay is useful for connecting disparate signals from machine controllers to the ShopFloorConnect Machine Interface's (SMI-2) inputs. The coil operates on 24 VDC.
We also offer a version with a 110/120 VAC coil (part number 2319901) and a DIN rail-mountable socket for this relay (part number 2320001).

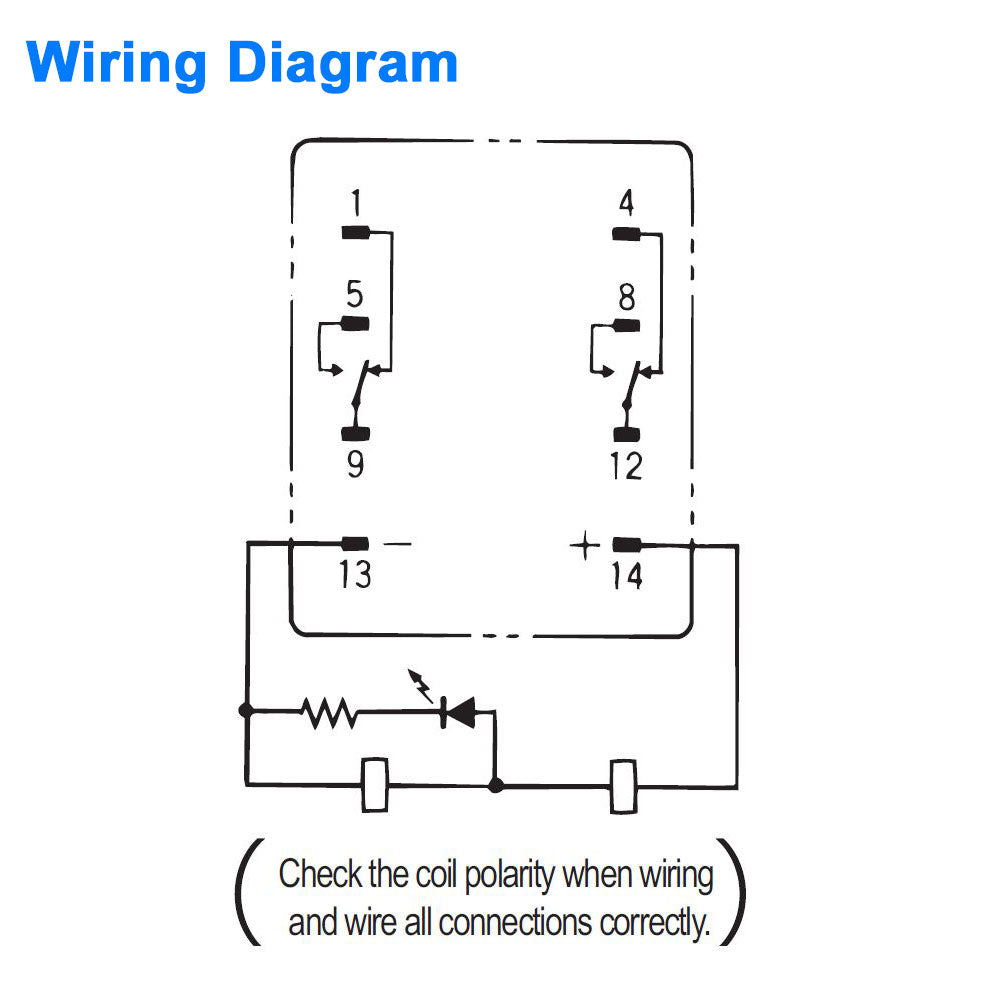

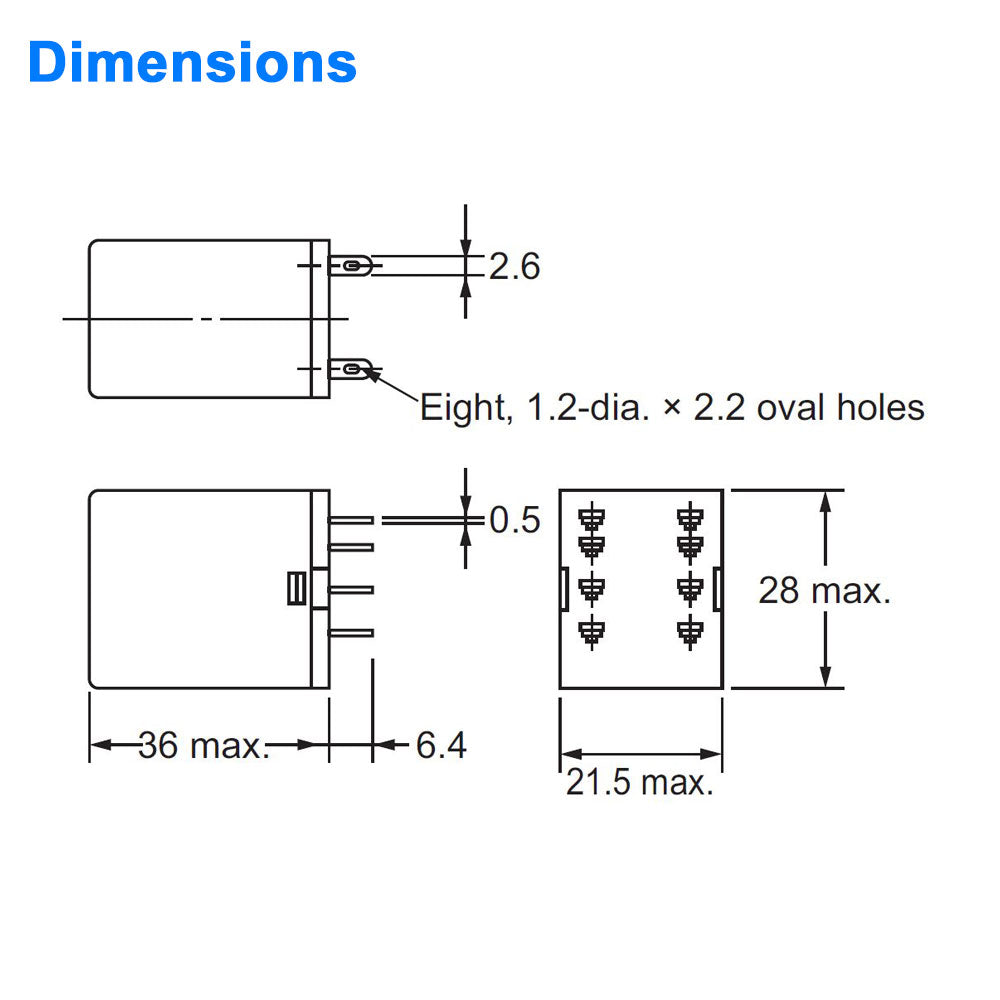

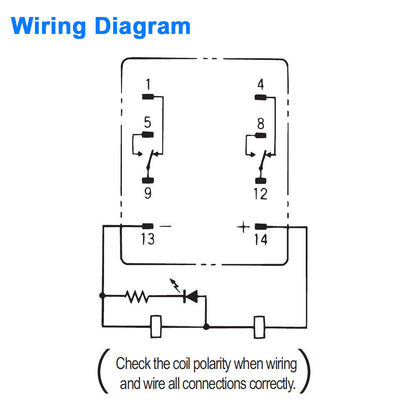

Specifications
| Coil voltage | 24 VDC | |
| Coil current | 36.9 mA | |
| Coil resistance | 650µΩ | |
| Coil Inductance | Armature OFF | 3.2 H |
| Armature ON | 5.72 H | |
| Must-operate coil voltage | 80% max. | |
| Must-release coil voltage | 30% min. | |
| Maximum coil voltage | 110% of rated voltage | |
| Coil power consumption | Approx 0.9 W | |
| Rated contact load | Resistive load | 5 A at 220 VAC, 5 A at 24VDC |
| Inductive load | 2 A at 220 VAC, 2 A at 24VDC | |
| Rated contact carry current | 5 A | |
| Contact configuration | DPDT | |
| Contact structure | Bifurcated | |
| Contact materials | AU plating + AG | |
| Ambient operating temp. | -55 to 60 degrees C | |
| Ambient operating humidity | 5% to 85% | |
| Contact resistance*1 | 50µΩmax. | |
| Operation time'2 | 20 ms max. | |
| Release time | 20 ms max. | |
| Max. operating frequency | Mechanical | 18,000 operations/h |
| Rated load | 1,800 operations/h | |
| Insulation resistance | 100 MQ min. | |
| Dielectric strength | Between coil and contacts | 2,000 VAC at 50/60Hz for 1 min. |
| Between contacts of the same polarity | 2,000 VAC at 50/60Hz for 1 min. | |
| Between contacts of different polarity | 1,000 VAC at 50/60Hz for 1 min. | |
| Vibration resistance | Destruction | 10 to 55 to 10Hz, 0.5-mm single amplitude (1.0-mm double amplitude) |
| Malfunction | 10 to 55 to 10Hz, 0.5-mm single amplitude (1.0 -mm double amplitude) | |
| Shock resistance | Destruction | 1,000 m/s2 |
| Malfunction | 200 m/s2 | |
| Endurance | Mechanical | 50,000,000 operations minimum (at operating frequency: 18,000 operations/h) |
| Electrical | 200,000 operations minimum (at rated load, switching frequency: 1,800 operaitons/h) | |
