Heavy Duty Plug (HDP) 4-port for HD19 system
4322101
Regular price
$316.00

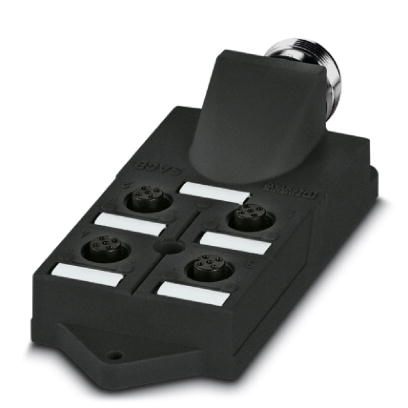

The 4-port HDP for the HD19 system is a heavy-duty die mounted junction box with individual connectors for the sensors. If you have more sensors to connect, the HDP is also available in an 8-port version. It connects to the DSI 2 Die Protection Sensor Interface with an HD19 cable.
Sensor connectors (both straight and 90° versions) are available separately. One per sensor is required.
Specifications:
| Rated voltage | 120 V |
| Max. operating voltage | 135 V |
| Max current per pin | 2 A |
| Max current per sensor port | 4 A |
| Max current total - all ports | 12 A |
| Number of sensor ports | 4 |
| Pins per port | 5 |

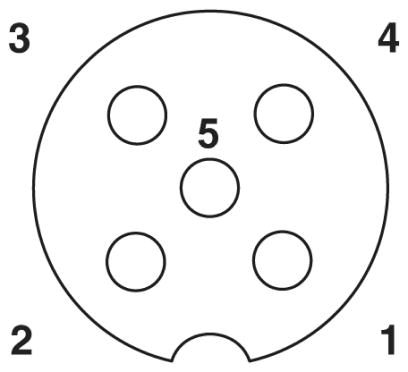

| Sensor connector type | M12 socket |
| Degree of protection | IP65 |
| Ambient operating temp | -20⁰ C to 75⁰ C |
