Heavy Duty Plug (HDP) 8-port for HD19 System

Heavy Duty Plug (HDP) 8-port for HD19 System

$395.00 USD
$395.00 USD
Sale Sold out

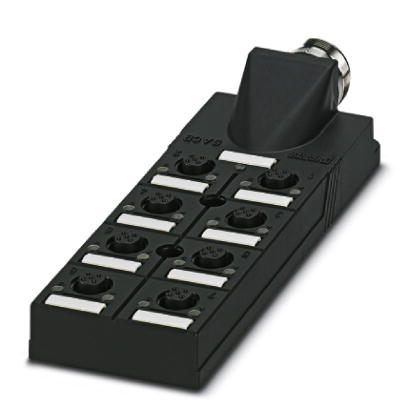

The 8-port HDP for the HD19 system is a heavy-duty die mounted junction box with individual connectors for the sensors.  If you only have a few sensors to connect, the HDP is also available in an 4-port version.  It connects to the DSI 2 Die Protection Sensor Interface with an HD19 cable.

Sensor connectors (both straight and 90° versions) are available separately.  One per sensor is required.

When used in conjunction with a DSI 2, the HDP system is compatible with the Wintriss SmartPAC PRO DiProPAC Die Protection Module, and the Wintriss DiPro 1500

The HDP may also be compatible with some legacy Wintriss products.  Contact the factory for details.



Specifications:

Rated voltage 120 V
Max. operating voltage 135 V
Max current per pin 2 A
Max current per sensor port 4 A
Max current total - all ports 24 A
Number of sensor ports 8
Pins per port 5

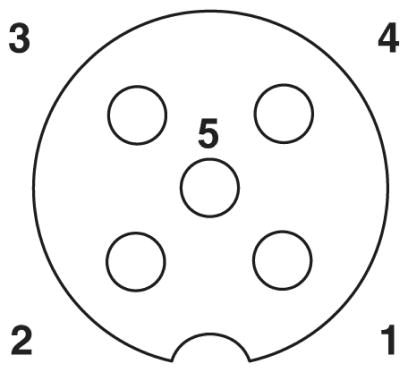

Sensor connector type M12 socket
Degree of protection IP65
Ambient operating temp -20⁰ C to 75⁰ C
