Long Range Through Beam Photoelectric Sensor
2318303The lubricants present in stamping dies create problems for photosensors. Droplets of lube can deflect sensing beams, and the film of dirty oil that forms on almost everything can affect sensors to the point where they will no longer operate.
There are two important criteria when selecting photoelectric sensors for in-die use:
- Use a sensor with an infrared beam that will shine through (rather than be deflected by) droplets of oil.
- Use a through beam photoelectric sensor with enough power to overcome a dirty environment. In other words, select a sensor with more range than you need.

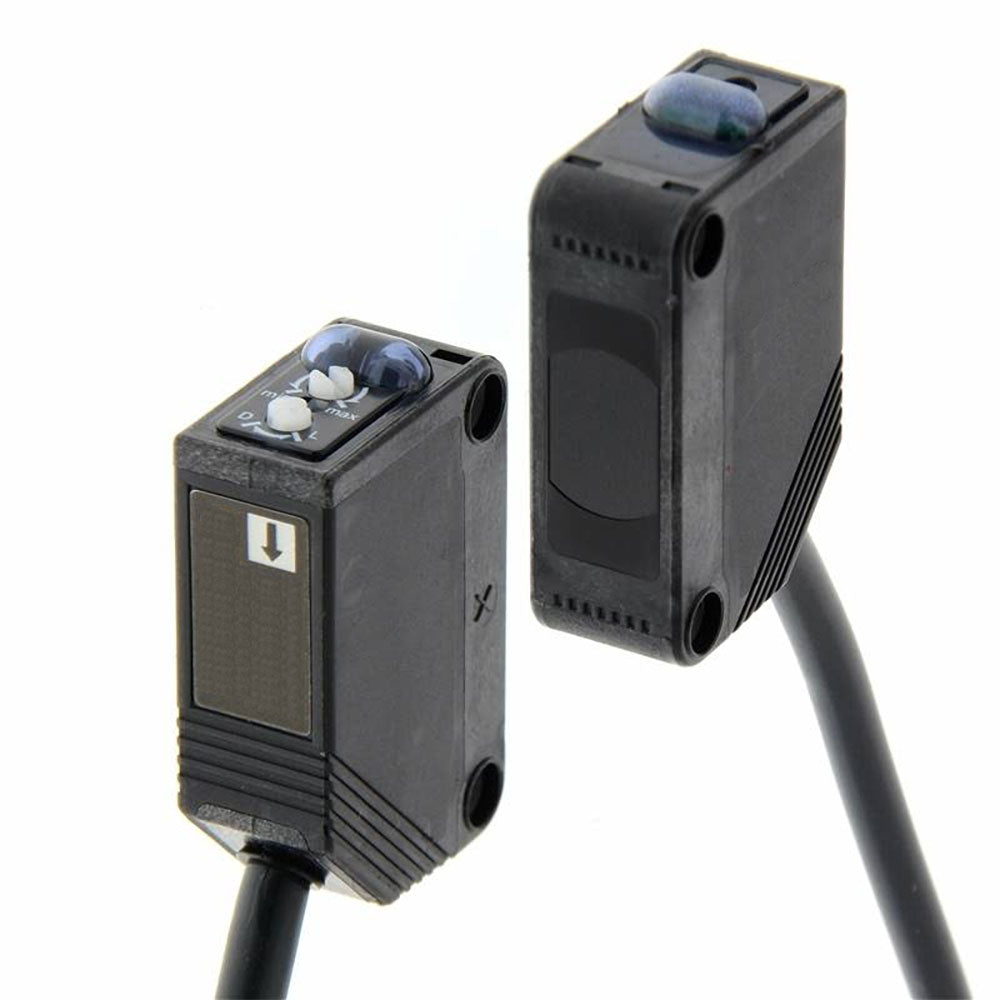

This through beam photoelectric sensor covers both. It features an infrared light source and an astounding 30 meter range that will enable it to operate in the dirtiest environments.
| Specifications | |
| Maximum sensing distance | 30 m |
| Standard sensing object | Opaque: 12-mm dia. min. |
| Directional angle | Both emitter and receiver: 3 to 15° |
| Light source (wavelength) | Infrared LED (870 nm) |
| Current consumption | 35 mA max. (Emitter: 15 mA max., Receiv- er: 20 mA max.) |
| Reversed power polarity protection | Yes |
| Output short circuit protection | Yes |
| Reversed output polarity protection | Yes |
| Response time | Operate or reset: 2 ms max. |
| Power supply voltage | 12 to 24 VDC +/-10%, ripple (p-p): 10% max. |
| Control output | 24 VDC, 100 mA max. |
| Output Type | NPN Open collector |
| Output Mode | Light-ON/Dark-ON selectable |
| Residual voltage | 1V max. |
| Sensitivity adjustment | One-turn adjuster |
| Ambient illumination (Rcvr side) | Incandescent lamp: 3,000 lx max. Sunlight: 10,000 lx max. |
| Ambient temperature range | Operating: -25 to 55°C, Storage: -40 to 70°C (with no icing or condensation) |
| Ambient humidity range | Operating: 35% to 85%, Storage: 35% to 95% (with no condensation) |
| Insulation resistance | 20 MΩ min. at 500 VDC |
| Dielectric strength | 1,000 VAC, 50/60 Hz for 1 min |
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5 mm double amplitude for 2 hours each in X, Y, and Z directions |
| Shock resistance | Destruction: 500 m/s/s 3 times each in X, Y, and Z directions |
| Indicators | Operation (orange), Stability (green). Emitter has power indicator (orange) only. |
| Degree of protection | IEC IP67 |
| Connection method | Pre-wired cable, length: 2 m) |
| Weight (packed) | Approx. 120 g |
| Case | PBT (polybutylene terephthalate) |
| Lens | Modified polyarylate |
This through beam photoelectric sensor is compatible with the following connection hardware:
- Wintriss DSI 2 Die Protection Sensor Interface
- HD19 PCB Kit
- HD19 Cable
- HDP 4-port die-mounted junction box
- HDP 8-port die-mounted junction box
- QDP Kit
- QDP Cables
You can also use the standard sensor connector to connect to the front panel of the Wintriss DSI 2.
These sensors can be used with the following Wintriss Controllers:
This sensor may also be compatible with some legacy Wintriss products. Contact the factory for details.
