Proximity Sensor - Flat Package - 3 mm Sensing Distance, Normally Closed - NPN

2318702
Regular price $181.00 $0.00 Unit price per

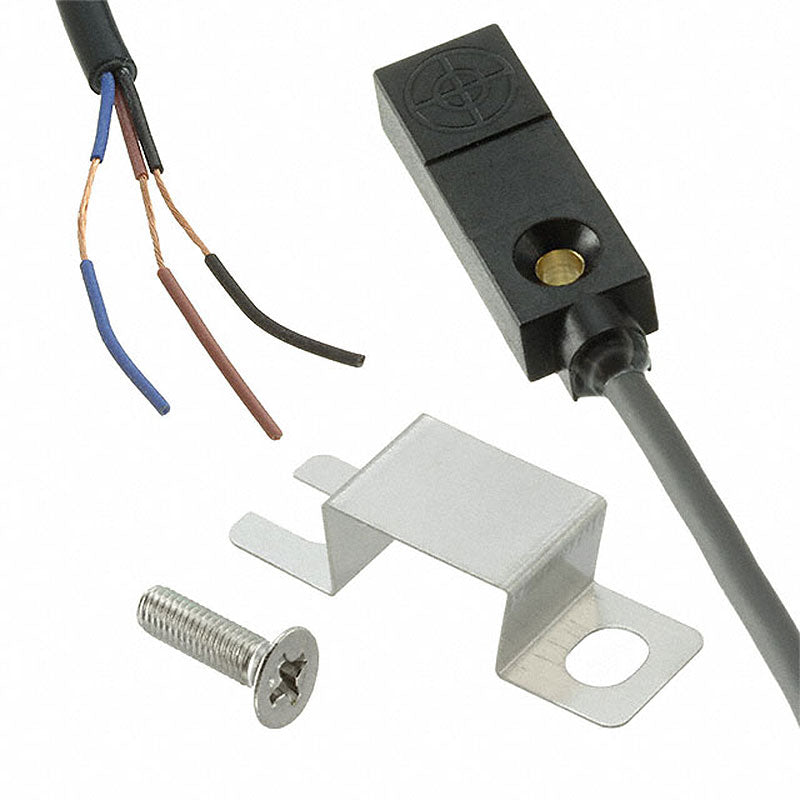

 This low-profile, flat mount proximity sensor features a 3mm sensing range, a 2m cable. and an IP67 environmental rating.

It can be used in areas (such as under a stripper plate) where is it difficult to mount a tubular barrel proximity sensor.

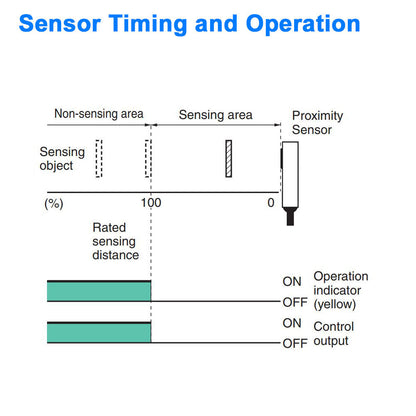

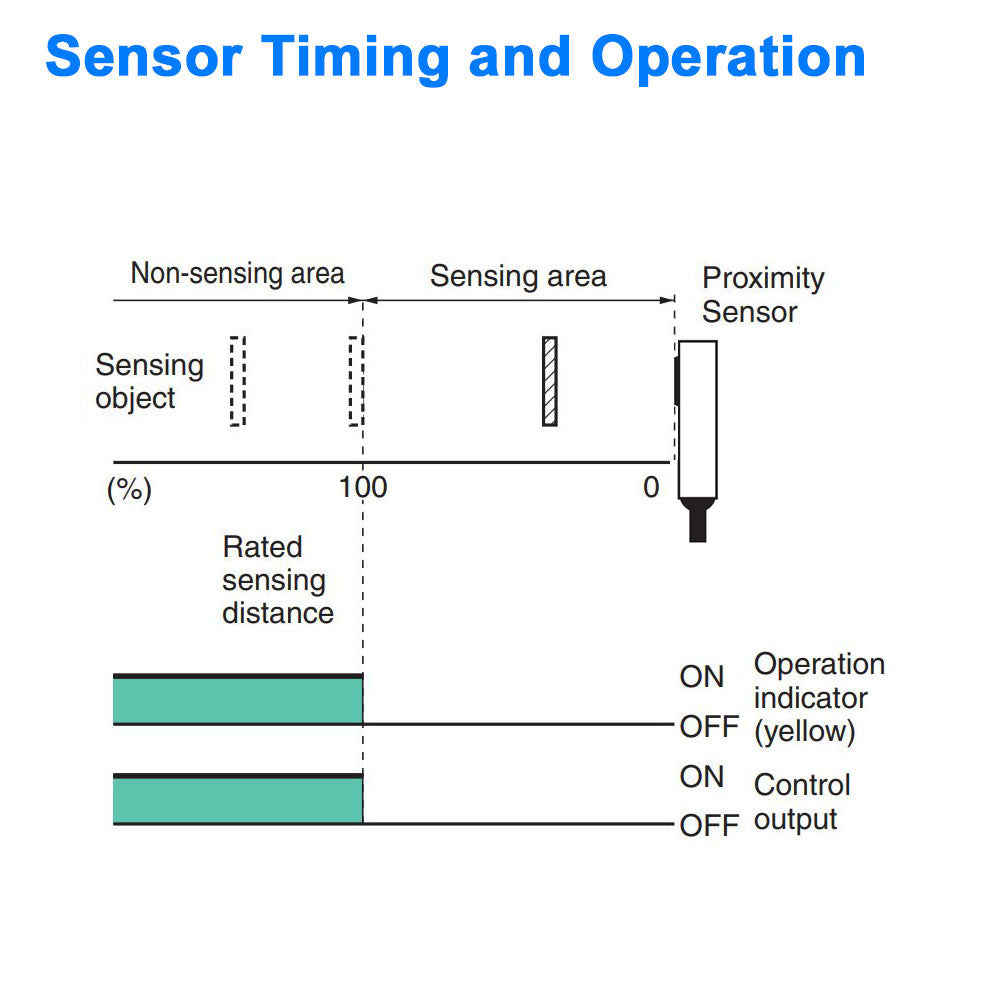

This inductive proximity sensor has a Normally Closed operating mode, in other words, it is ON with no target present, and it turns OFF when metal enters the sensing field.



Specifications
Sensing distance 3 mm +/-10%
Set distance 0 to 2.4 mm
Differential travel 10% max. of sensing distance

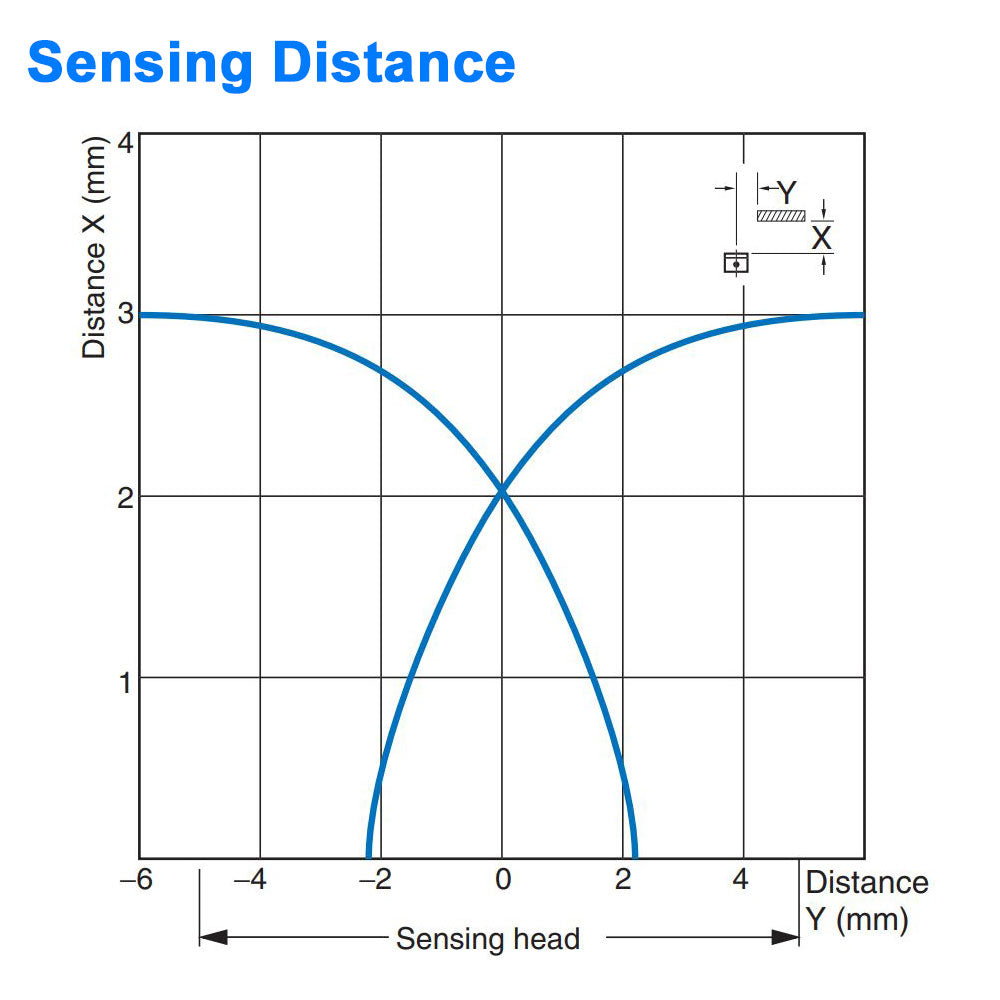

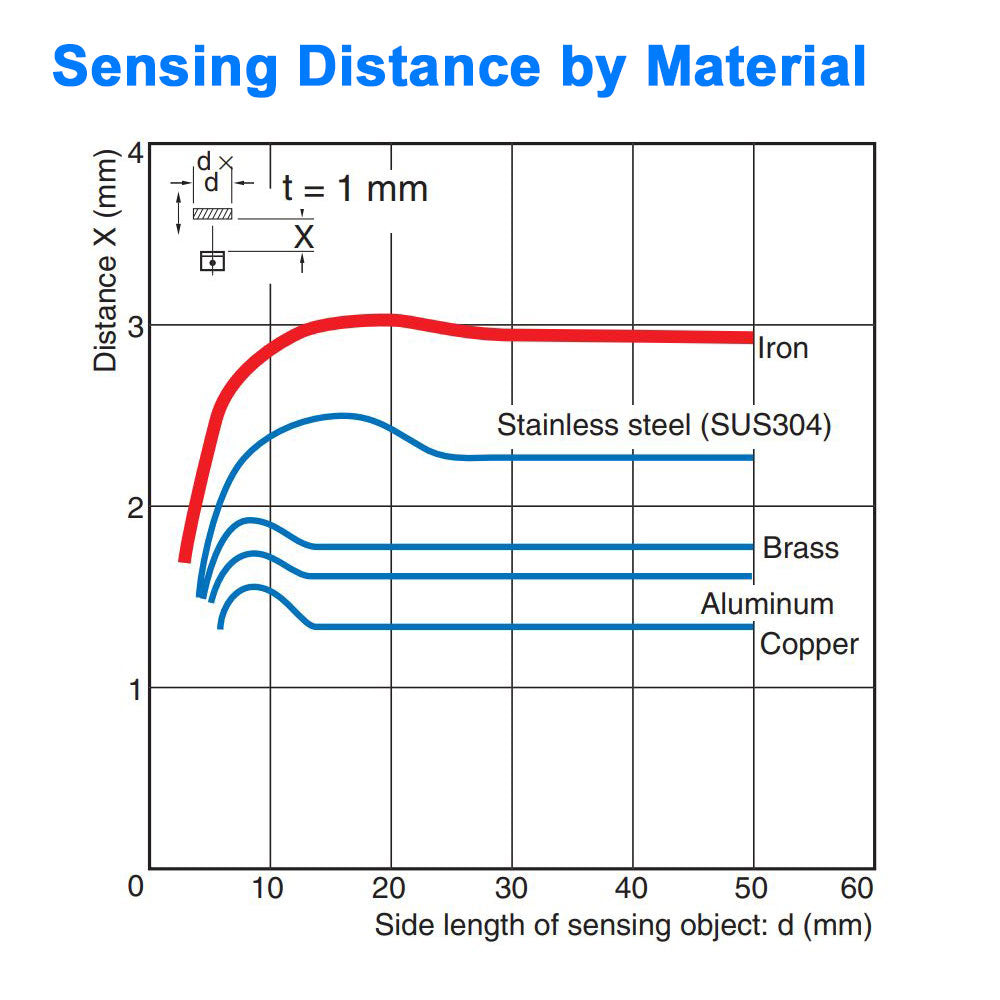

Detectable object Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to the graph.)
Standard sensing object Iron, 12 x 12 x 1 mm
Response frequency 600 Hz min.
Operating voltage range 10 to 30 VDC, ripple (p-p): 10% max.
Current consumption 15 mA max. at 24 VDC (no-load)

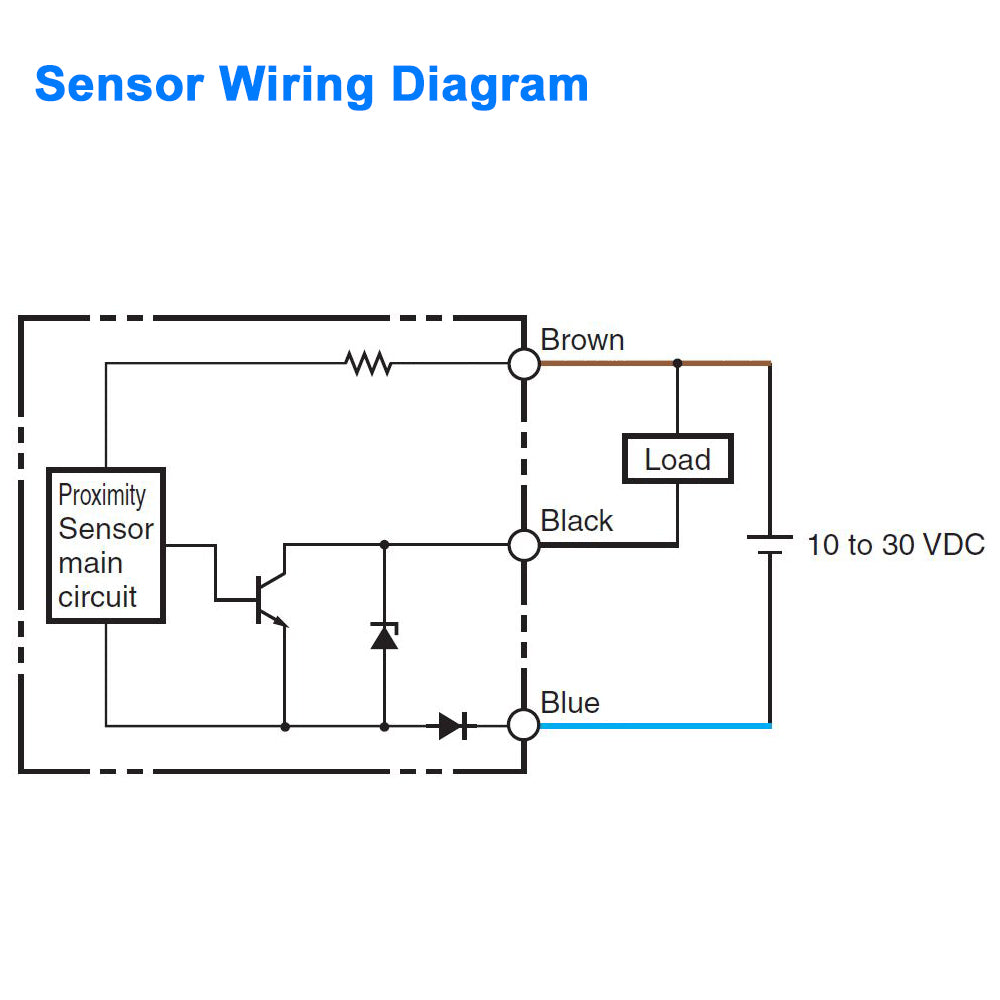

Control output NPN open collector, 100 mA max. at 30 VDC max.
Residual voltage 1 V max. (under load current of 100 mA with cable length of 2 m)
Indicators Detection indicator (red)
Operation mode (with sensing object approaching) Normally Closed (NC)
Protection circuits Reverse polarity protection, Surge suppressor
Ambient temperature range Operating/Storage: -25 to 70°C (with no icing or condensation)
Ambient humidity range Operating/Storage: 35% to 95% (with no condensation)
Temperature influence +/-10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C
Voltage influence +/- 2.5% max. of sensing distance at the rated voltage range +/-10%
Insulation resistance 50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength 1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case
Vibration resistance Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance Destruction: 500 m/s/s 3 times each in X, Y, and Z directions
Degree of protection IEC 60529 IP67, in-house standards: oil-resistant

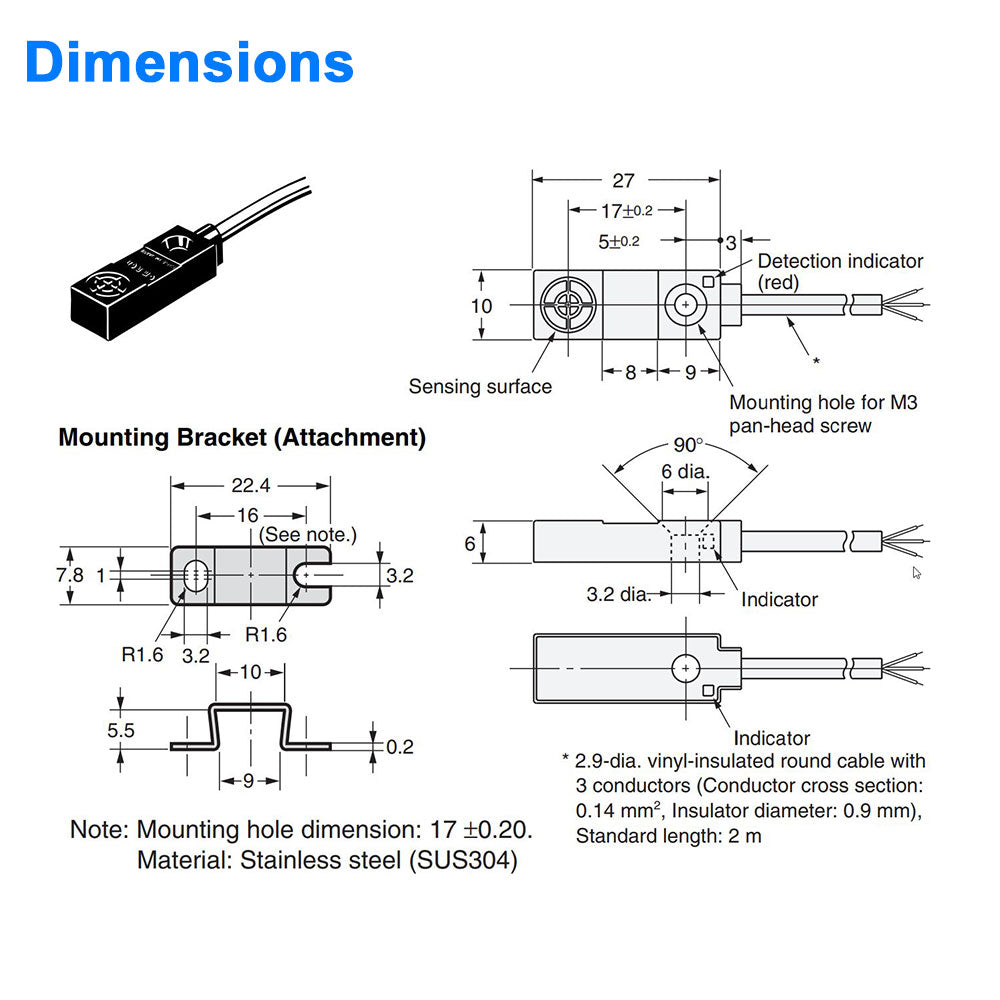

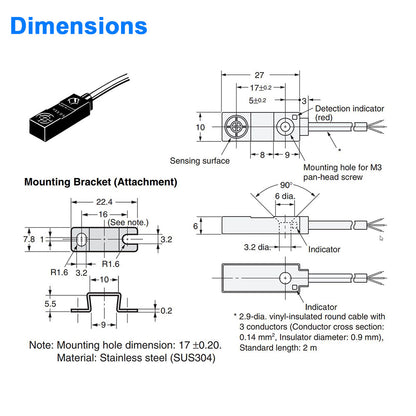

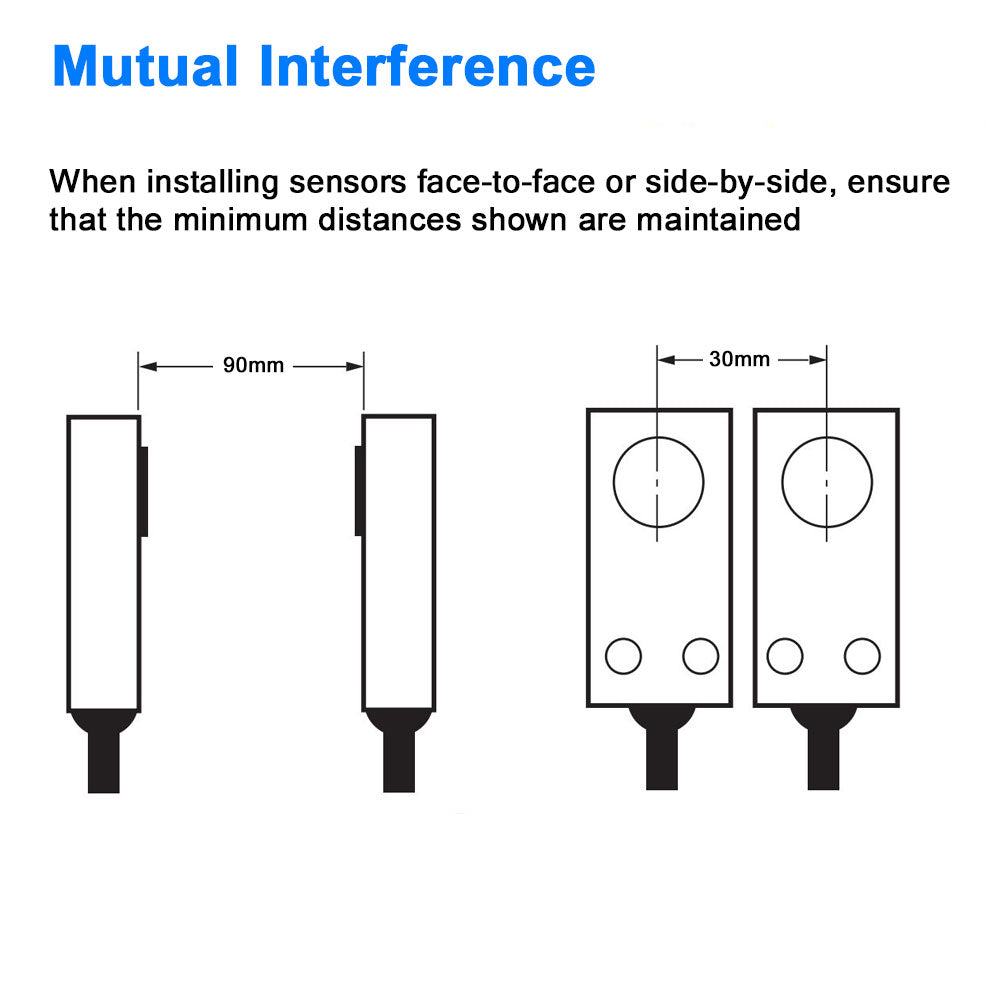

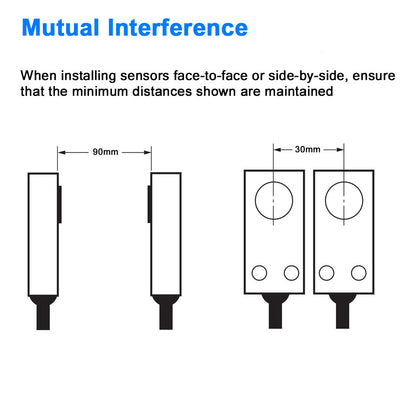

Connection method Pre-wired cable, length: 2 m
Weight (packed) Approx. 30 g
Case material Heat-resistant ABS
Sensing surface material Heat-resistant ABS
Accessories Mounting Bracket, Instruction manual



This sensor is compatible with the following connection hardware:

You can also use the standard sensor connector to connect to the front panel of the Wintriss DSI 2.

These sensors can be used with the following Wintriss Controllers:

This sensor may also be compatible with some legacy Wintriss products.  Contact the factory for details.
