DSI 2 (8-input) w-Sensor connectors, QDP, & HD19 - 110 VAC
DSI 2 (8-input) w-Sensor connectors, QDP, & HD19 - 110 VAC
The Wintriss Store

DSI 2 (8-input) w-Sensor connectors, QDP, & HD19 - 110 VAC

9677908
Regular price $1,755.00 $0.00 Unit price per

The DiPro Sensor Interface (DSI 2) allows you to connect most electromechanical and discrete-output electronic sensors to your die protection control.

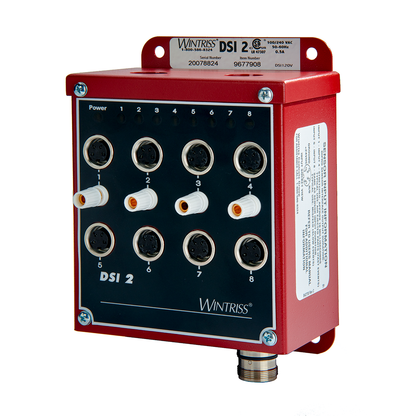

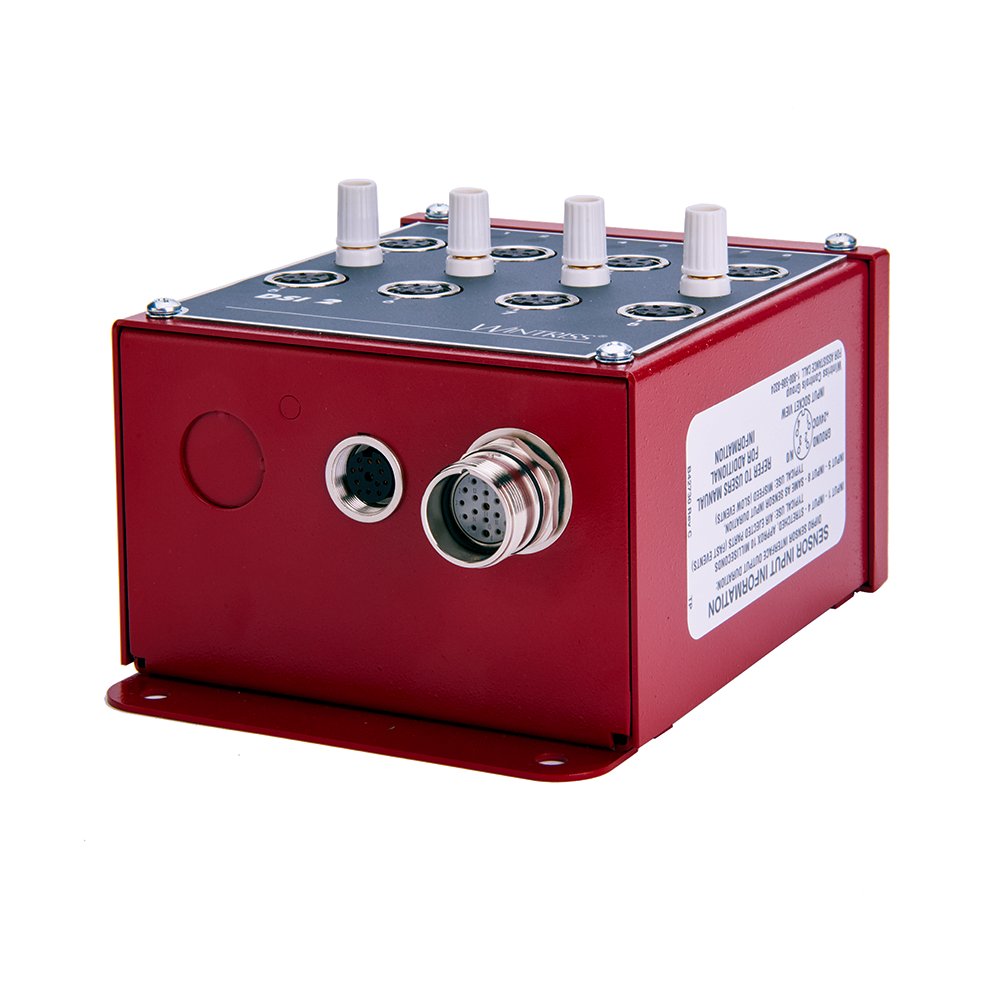

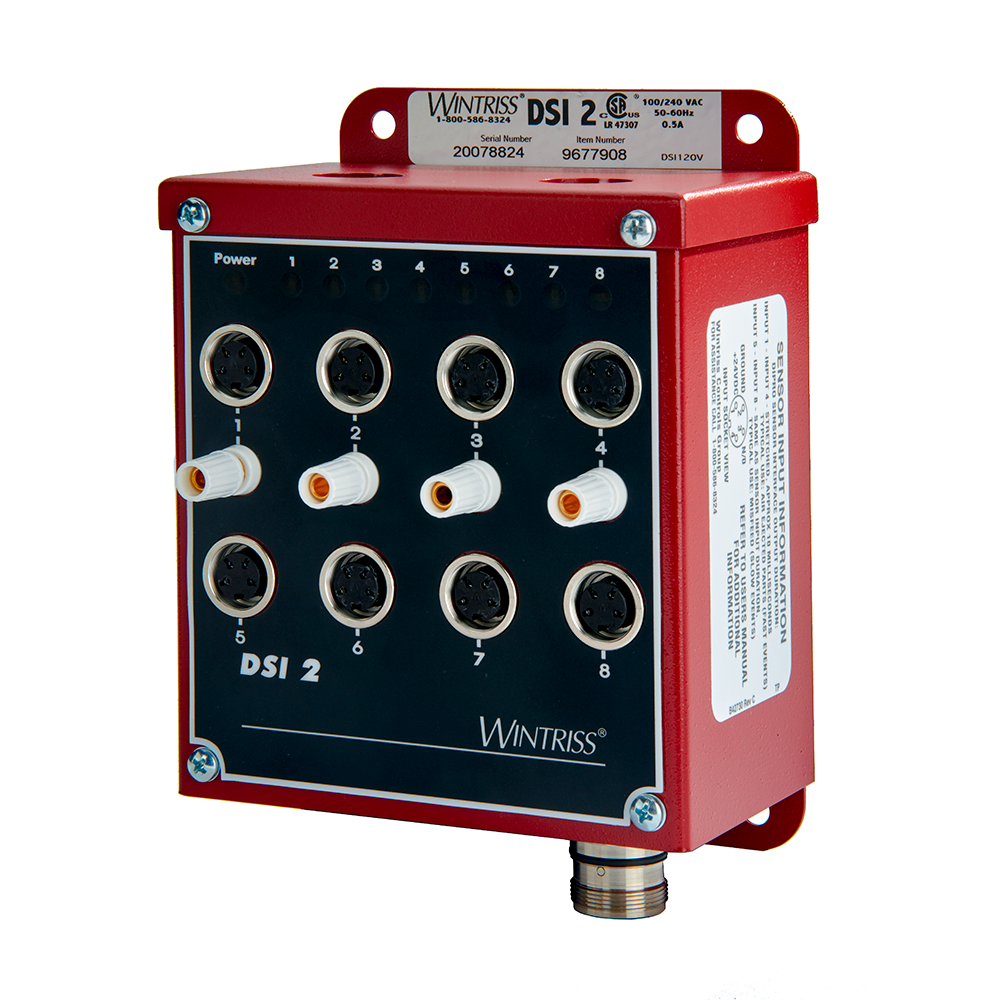

The DSI 2 model (9677908) features 8 sensor inputs, with individual Lumberg SV-40 connectors for each sensor on the front panel, and both the HD19 and QDP connectors on the bottom of the unit.  The HD19 connector, along with a HD19 cable, and HD19 Kit make it possible to connect up to 8 die-mounted sensors to the DSI 2 with a single cable.  The QDP performs a similar function with a lighter duty package.



The DSI 2 is compatible with all versions of the Wintriss SmartPAC, the Wintriss DiPro 1500, or any other controller that accepts discrete sensor inputs.

  • Built-in 24 VDC, 12 Watt power supply to power your sensors.
  • Pulse stretching on inputs 1-4 to stretch very fast signals (usually from part ejection sensors) to a fixed duration of 10mSec.
  • Can accept input from any 24VDC 3-or-4-wire NPN or PNP sensor
  • Compatible with electromenchanical (normally-open and normally-closed-to-ground) probes, switches, and sensors
  • Can be used with 2-wire DC and Push/Pull output sensors if additional components are added

The DSI 2 is a flexible sensor connection solution.   Other versions are available without front-panel connectors for wiring individual sensors, and with a variety of larger connectors (including a heavy duty 19-pin M23 connector) for use with die-mounted junction boxes that allow you to connect up to 16 sensors to the DSI with a single cable.

Download the User Manual

Please Note:

If you intend to supply your own die-mounted junction boxes, please read this Application Note about compatibility with the DSI 2.




Share this Product
