Long Range Proximity Sensor - 12 mm Diameter, Shielded, Normally Closed - NPN

2319304
Regular price $171.00 $0.00 Unit price per

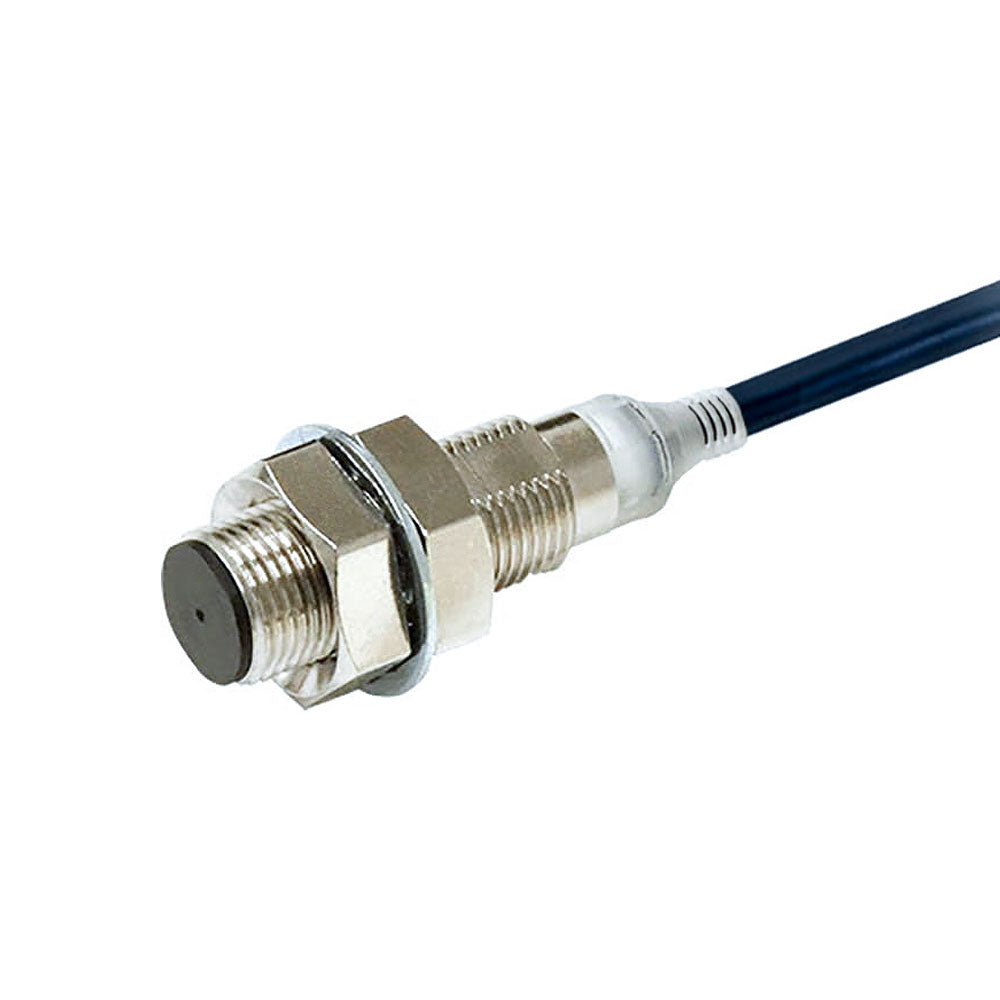

This extra-long range 12 mm diameter shielded proximity sensor is Normally Closed, which makes it useful to detect holes.

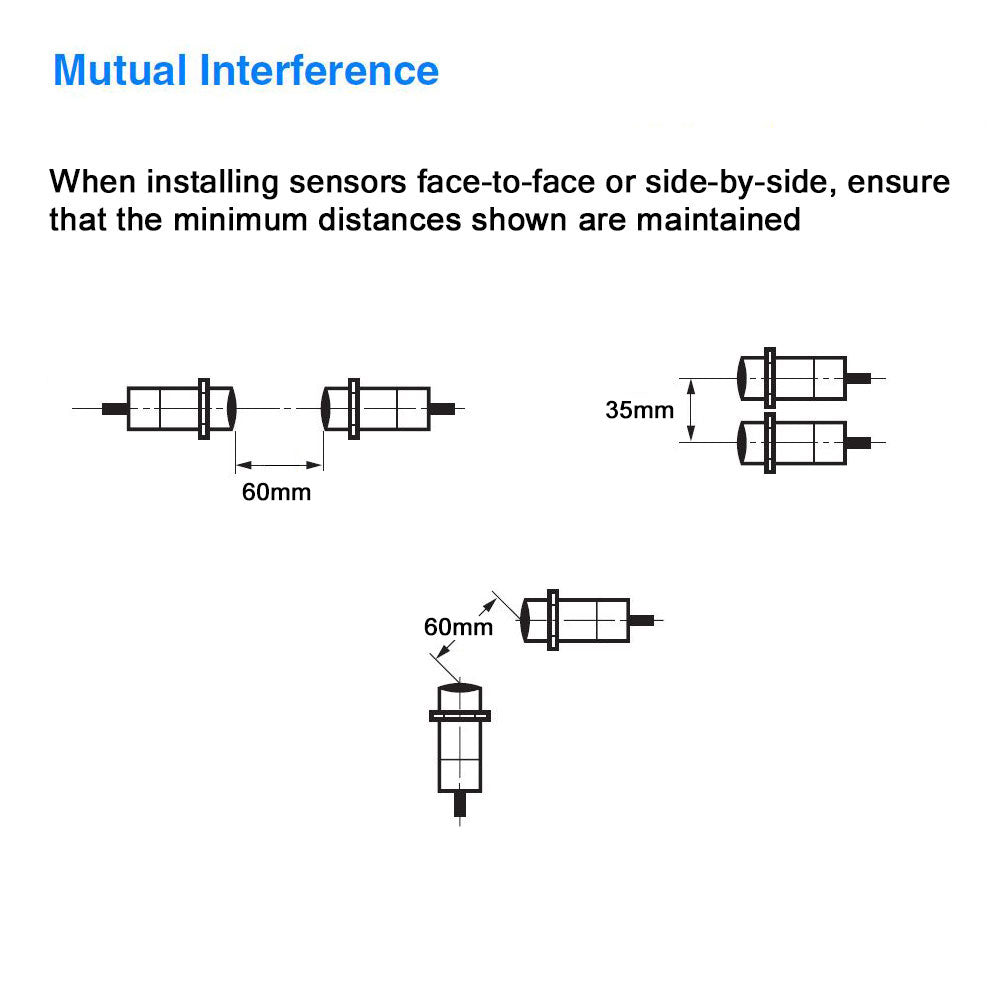

It has a 9mm sensing range, and is one of the most useful general-purpose die protection sensors.   This sensor has a threaded housing, and should be secured into an M12 x 1 threaded hole with thread locker.  If the sensor is to be removed from the die during maintenance, epoxy it into a removable bushing or insert.

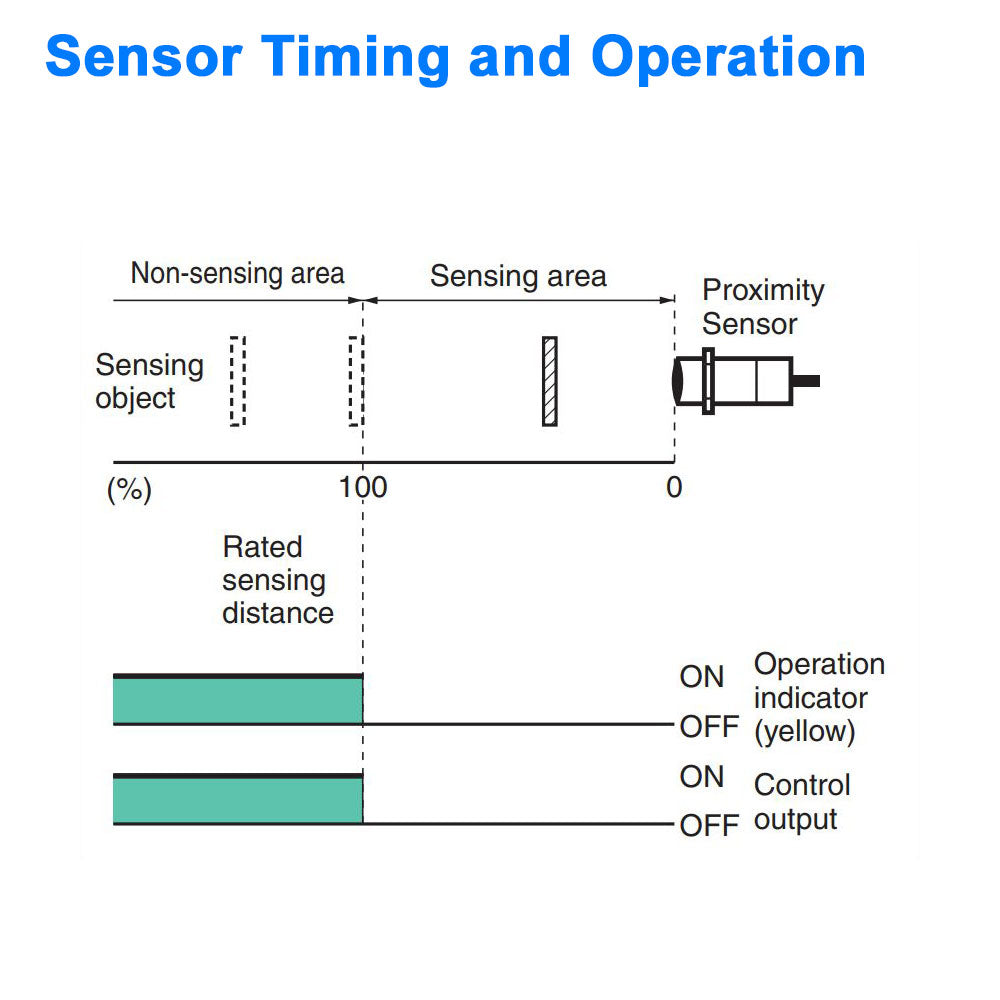

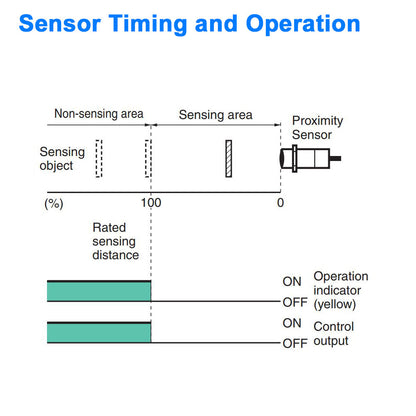

As a Normally Closed sensor, it actuates (turns On) when metal leaves the sensing field, and turns Off when metal enters the sensing field.

Like all of our inductive proximity sensors, this sensor is immune to non-metallic contaminants, oil resistant, and features an IP67 environmental rating.

Inductive proximity sensors are excellent and trouble-free general purpose die protection sensors (or any other application where the sensing target is made of metal).  They're fast, precise, accurate, will not wear out, are not affected by lube (even water-based), and are easy to install.

Here are the detailed specs for this sensor:

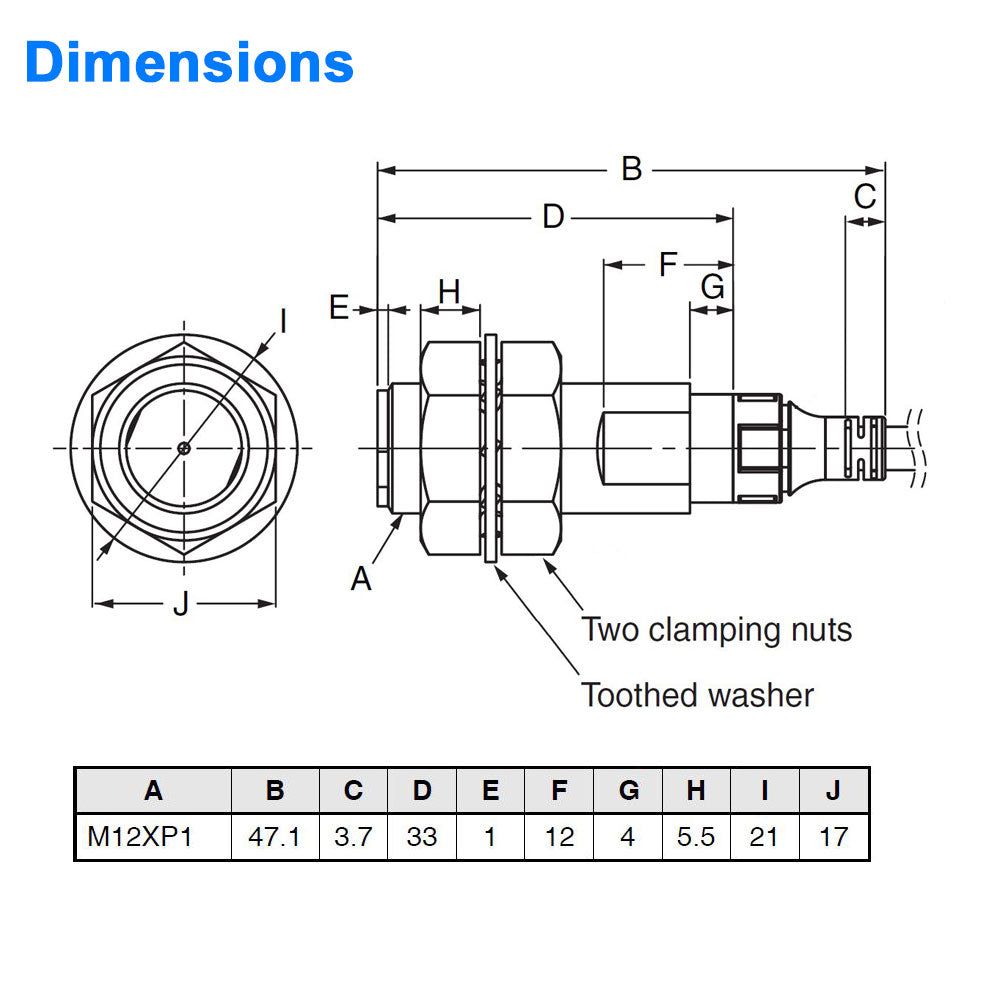

Size 12 mm dia.
Type Shielded

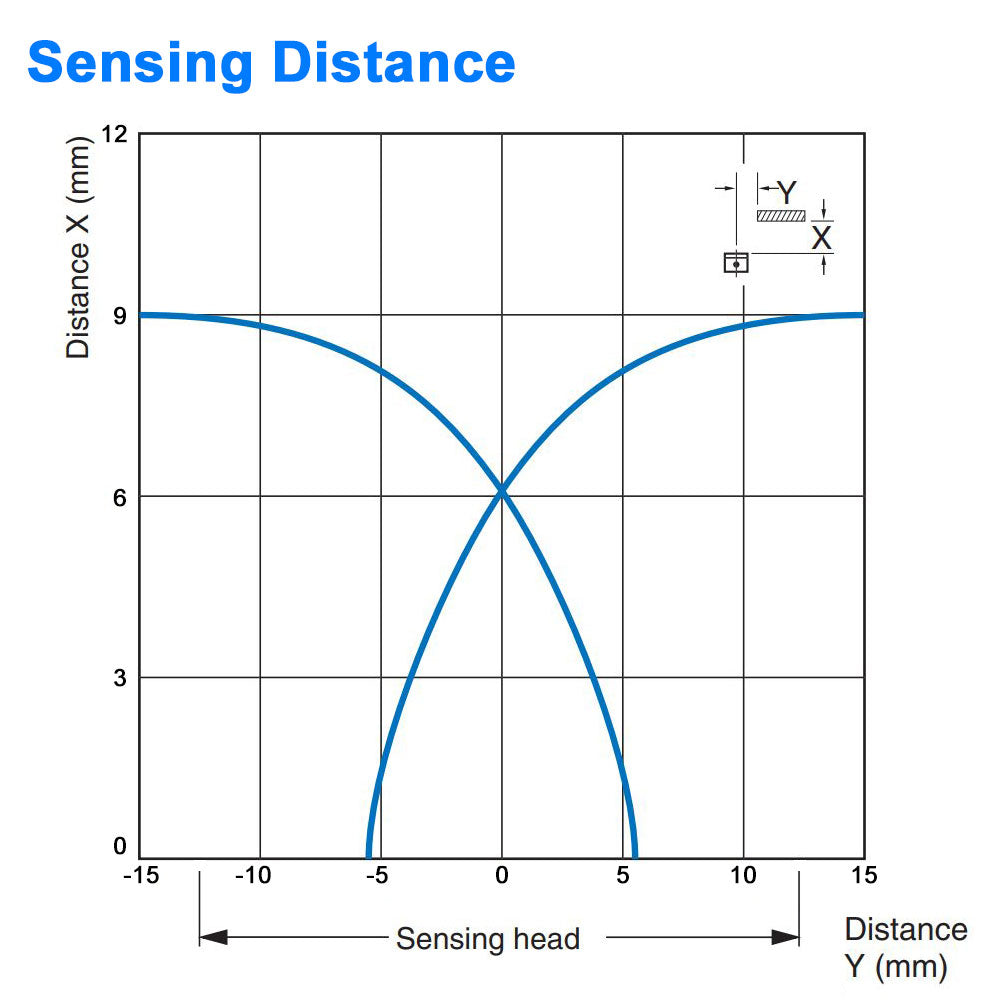

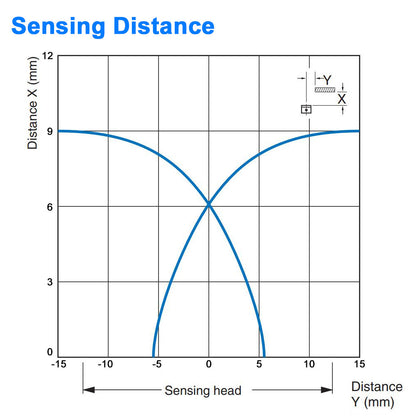

Sensing distance 9 mm +/-10%

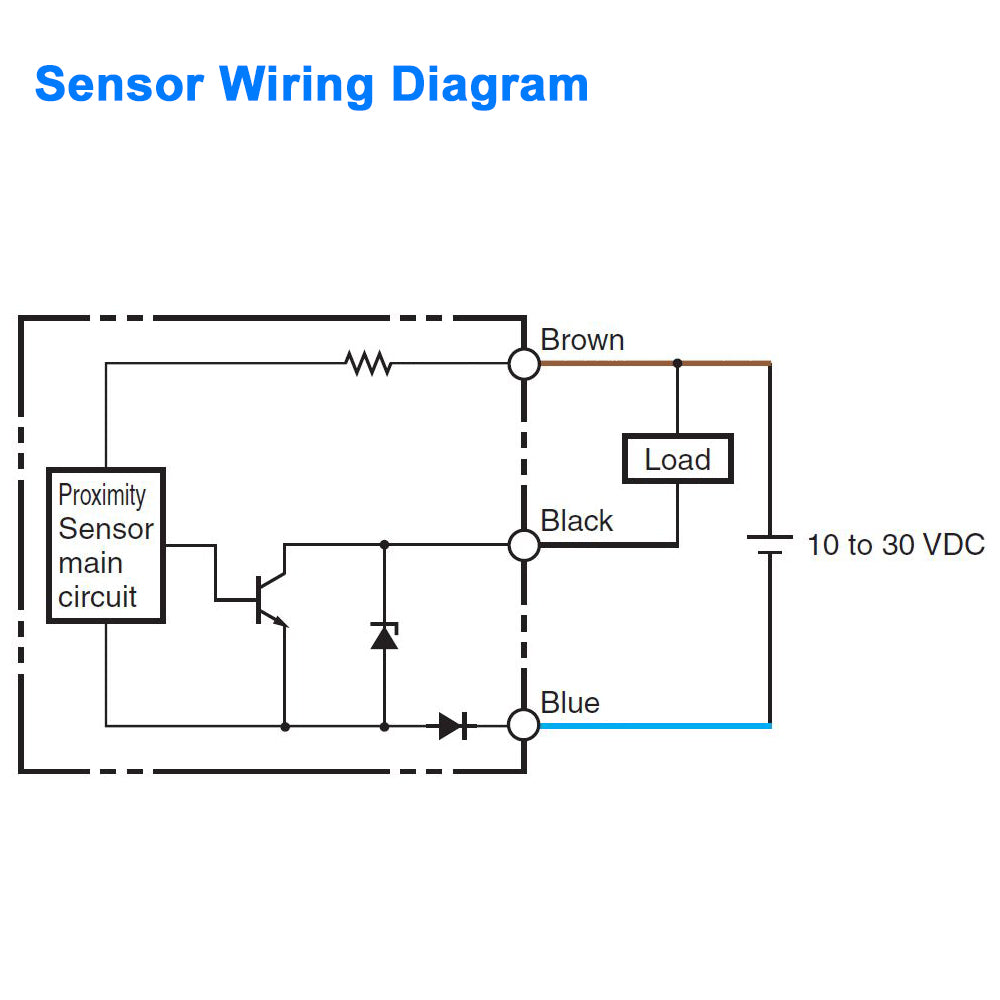

Operation mode NPN open collector - NORMALLY CLOSED
Differential travel 10% max. of sensing distance

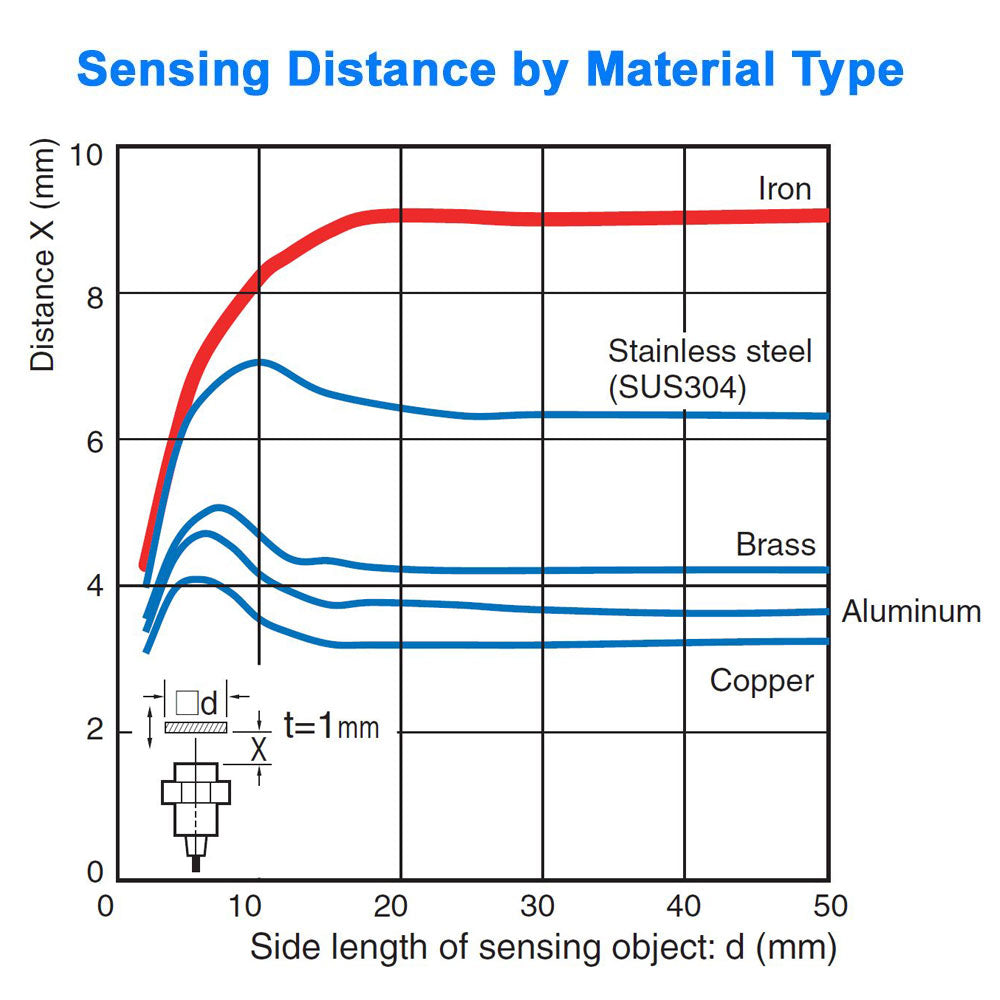

Detectable object Ferrous metal (The sensing distance decreases with non-ferrous metal. See the "Sensing Distance by Material Type" graph)
Standard sensing object Iron, 27 x 27 x 1 mm
Response frequency (time) 700 Hz (1.4 milliseconds)
Power supply voltage 10 to 30 VDC (including 10% ripple (p-p))
Current consumption 16 mA max.
Load (output) current 50 mA max.
Residual voltage 2 V max.
Indicators Operation indicator (Orange LED)
Protection circuits Output reverse polarity protection, Power source circuit reverse polarity protection, Surge suppressor, Load short-circuit protection
Ambient temperature range Operation and storage: -25 to 70 degrees C (with no icing or condensation)
Ambient humidity range Operation and storage: 35% to 95%
Temperature influence +/- 15% max. of sensing distance at 23 degrees C within temperature range of 25 to 70 degrees C
Voltage influence +/- 1% max. of sensing distance at 24V +/-15% range
Vibration resistance Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance Destruction: 1000 m/s/s 10 times each in X, Y, and Z directions
Degree of protection IEC 60529 IP67, in-house standards: oil-resistant
Case Material Nickel plated brass
Clamping Nut Nickel plated brass
Toothed Washer Zinc plated steel
Sensing surface material PBT
Cable Polyvinyl chloride (PVC), 4 mm diameter,  2 meter length



This sensor is compatible with the following connection hardware:

You can also use the standard sensor connector to connect to the front panel of the Wintriss DSI 2.

These sensors can be used with the following Wintriss Controllers:

This sensor may also be compatible with some legacy Wintriss products.  Contact the factory for details.
