Proximity Sensor - Flat Package - 3 mm Sensing Distance, Normally Open - NPN
Proximity Sensor - Flat Package - 3 mm Sensing Distance, Normally Open - NPN
Regular price
$191.00 USD
Regular price
Sale price
$191.00 USD

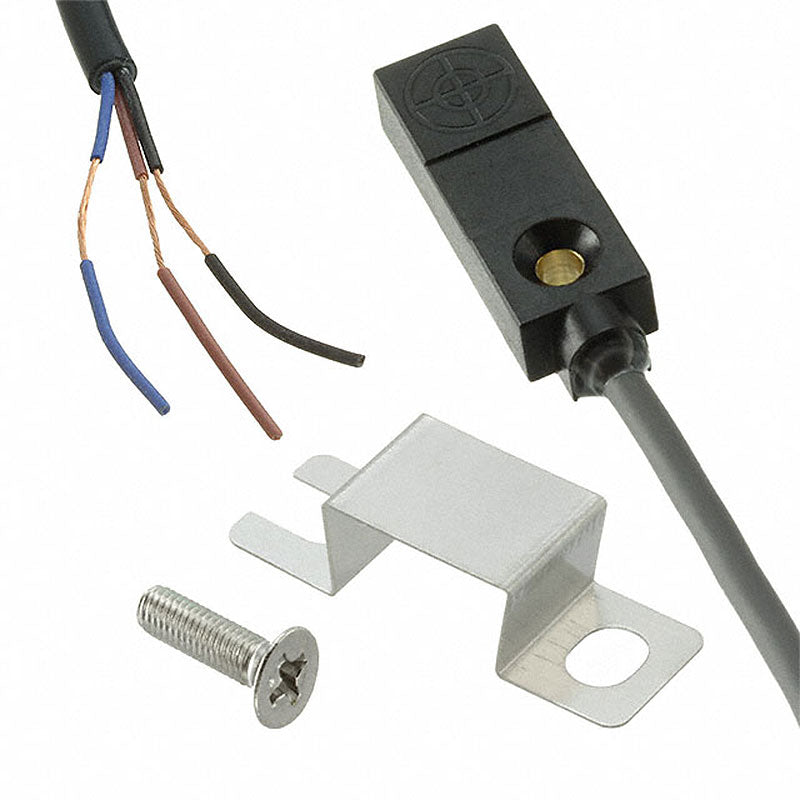

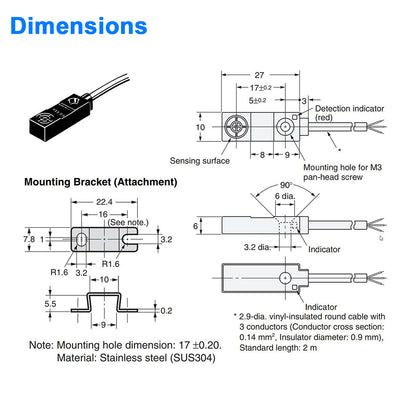

This low-profile, flat mount inductive proximity sensor features a 3mm sensing range, and can be used in areas (such as under a stripper plate) where is it difficult to mount a tubular barrel proximity sensor.

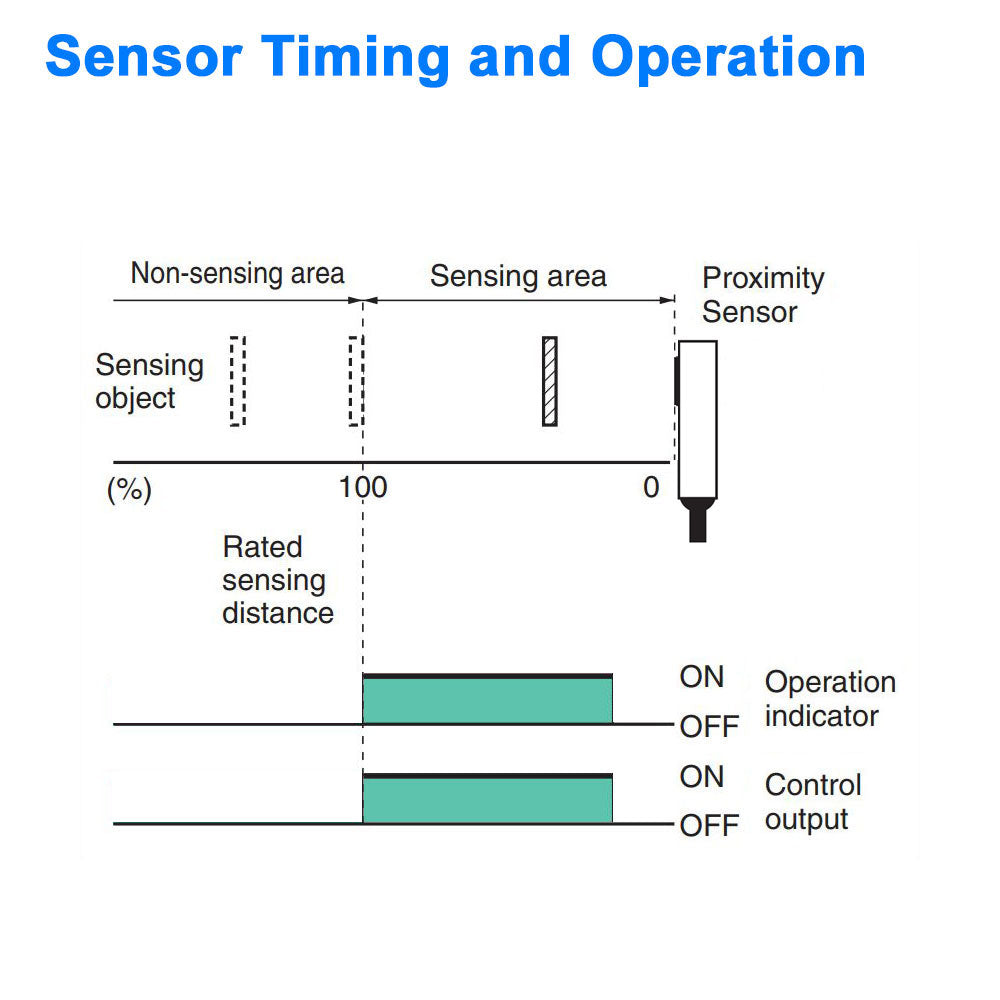

This sensor has a Normally Open operating mode, in other words, it turns ON when metal enters the sensing field.
This sensor features a 2m cable and an IP67 environmental rating.
| Specifications | |
| Sensing distance | 3 mm +/-10% |
| Set distance | 0 to 2.4 mm |
| Differential travel | 10% max. of sensing distance |

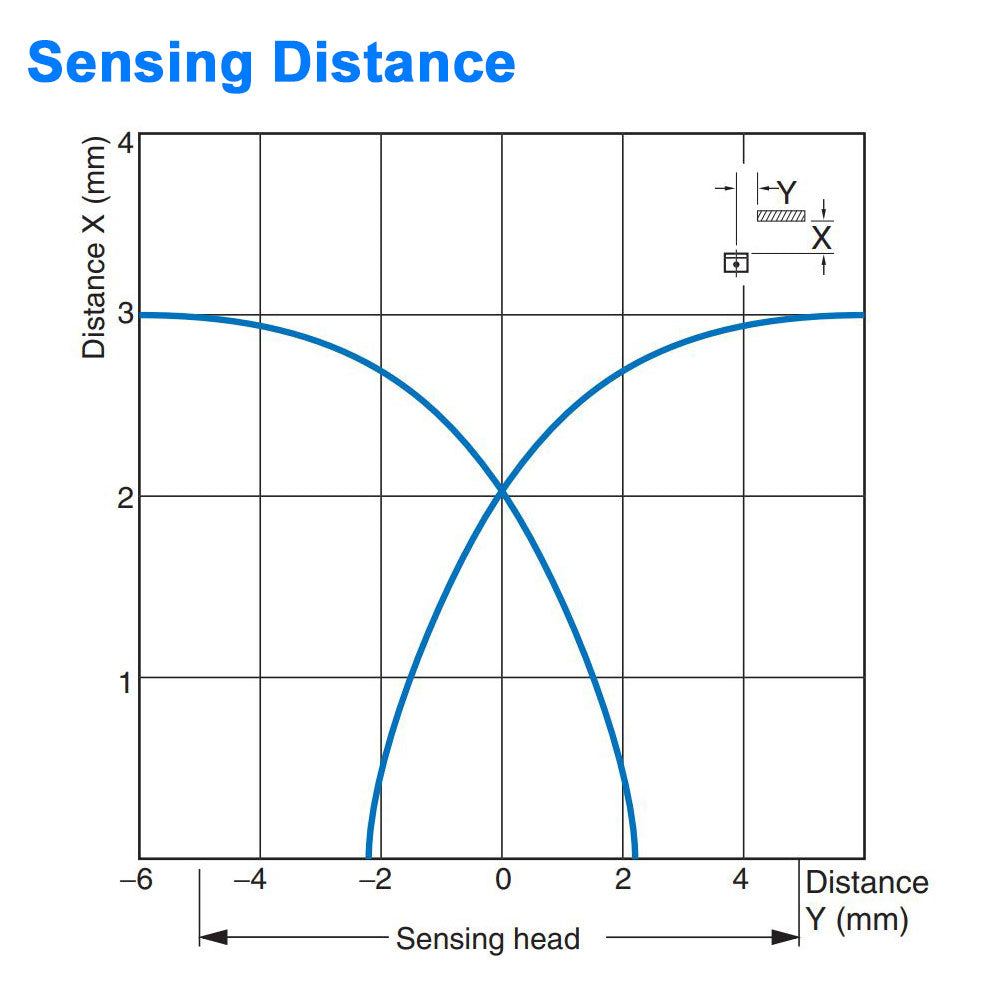

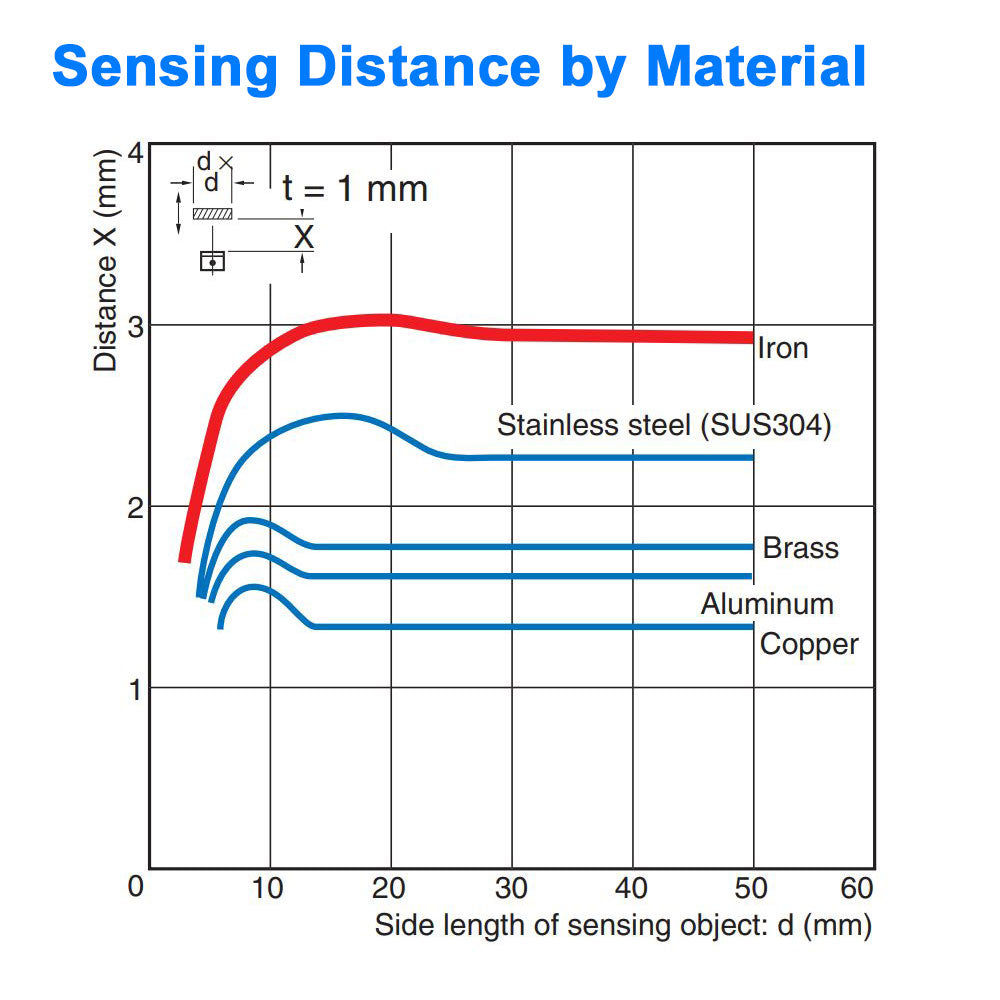

| Detectable object | Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to the graph.) |
| Standard sensing object | Iron, 12 x 12 x 1 mm |
| Response frequency | 600 Hz min. |
| Operating voltage range | 10 to 30 VDC, ripple (p-p): 10% max. |
| Current consumption | 15 mA max. at 24 VDC (no-load) |

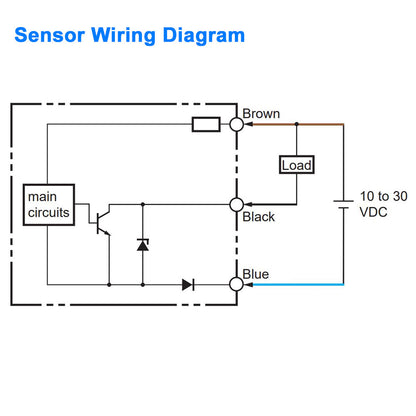

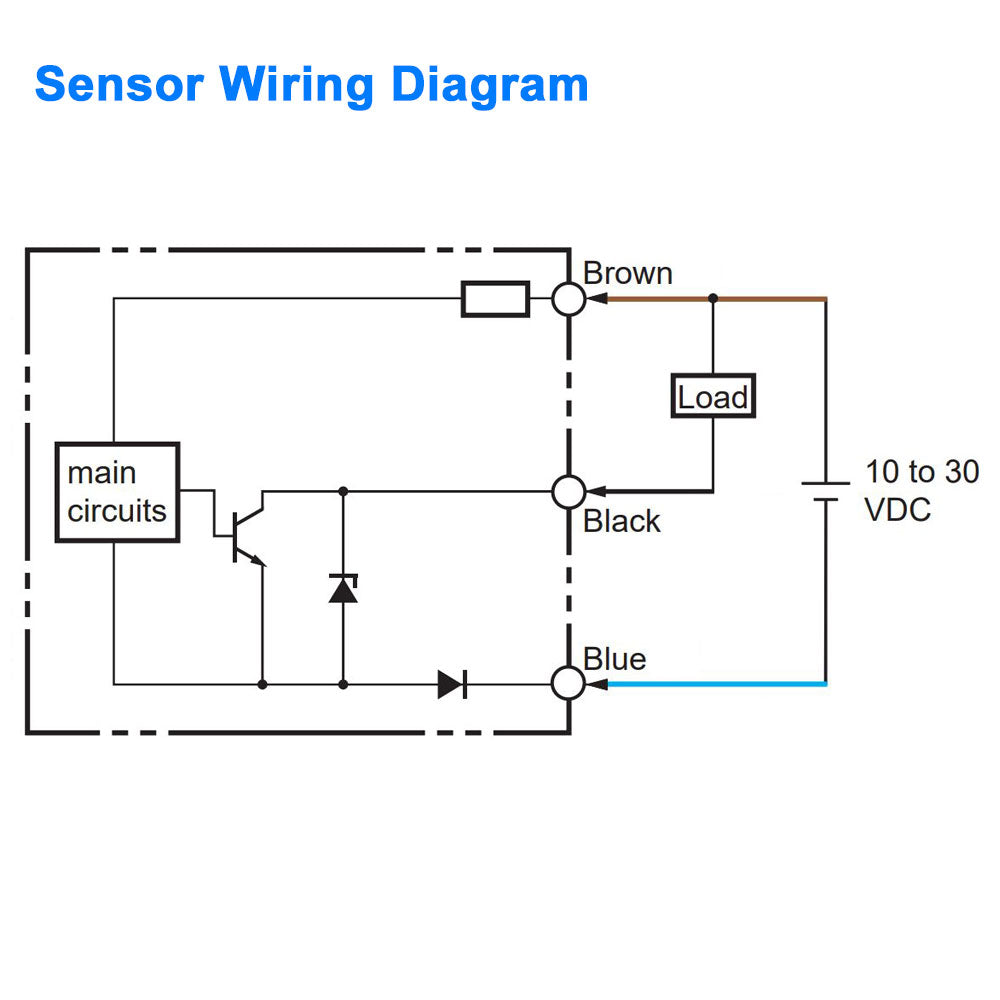

| Control output | NPN open collector, 100 mA max. at 30 VDC max. |
| Residual voltage | 1 V max. (under load current of 100 mA with cable length of 2 m) |
| Indicators | Detection indicator (red) |
| Operation mode (with sensing object approaching) | Normally OPEN (NO) |
| Protection circuits | Reverse polarity protection, Surge suppressor |
| Ambient temperature range | Operating/Storage: -25 to 70°C (with no icing or condensation) |
| Ambient humidity range | Operating/Storage: 35% to 95% (with no condensation) |
| Temperature influence | +/-10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C |
| Voltage influence | +/- 2.5% max. of sensing distance at the rated voltage range +/-10% |
| Insulation resistance | 50 MΩ min. (at 500 VDC) between current-carrying parts and case |
| Dielectric strength | 1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case |
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
| Shock resistance | Destruction: 500 m/s/s 3 times each in X, Y, and Z directions |
| Degree of protection | IEC 60529 IP67, in-house standards: oil-resistant |
| Connection method | Pre-wired cable, length: 2 m |
| Weight (packed) | Approx. 30 g |
| Case material | Heat-resistant ABS |
| Sensing surface material | Heat-resistant ABS |

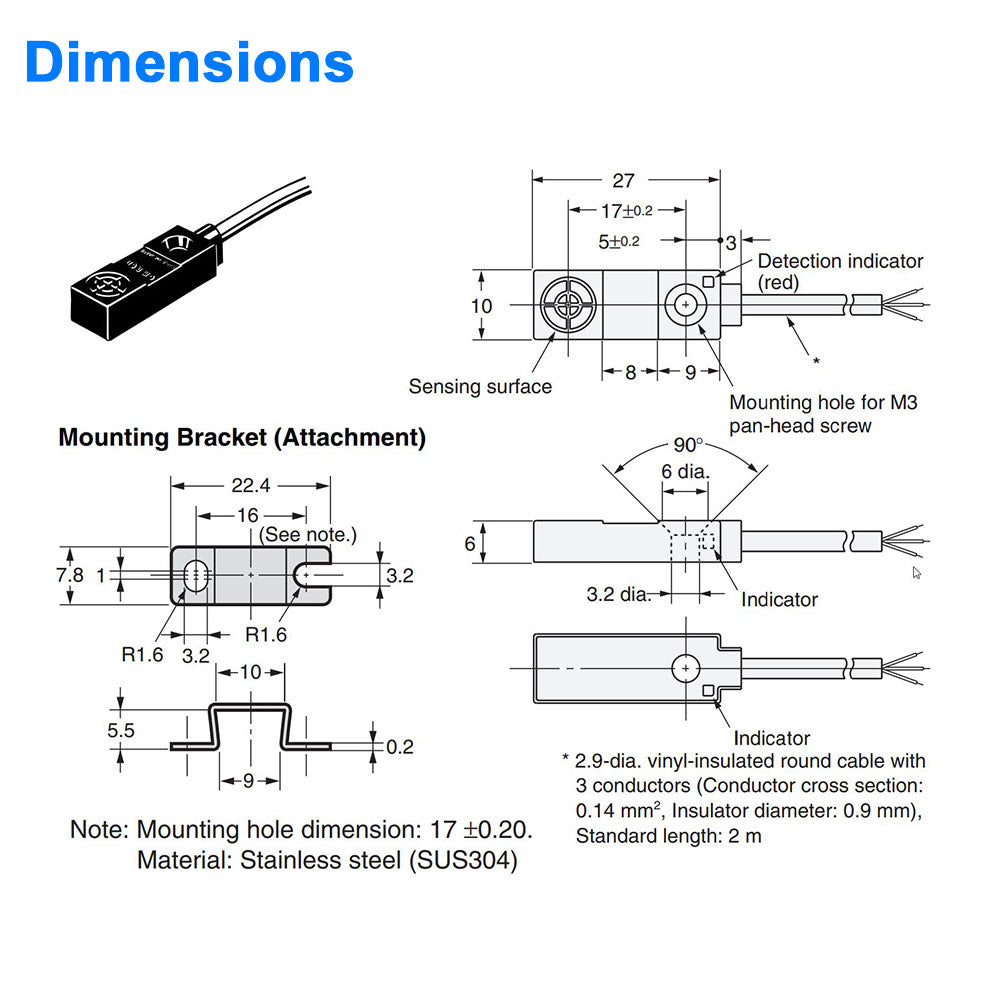

| Accessories | Mounting Bracket, Instruction manual |

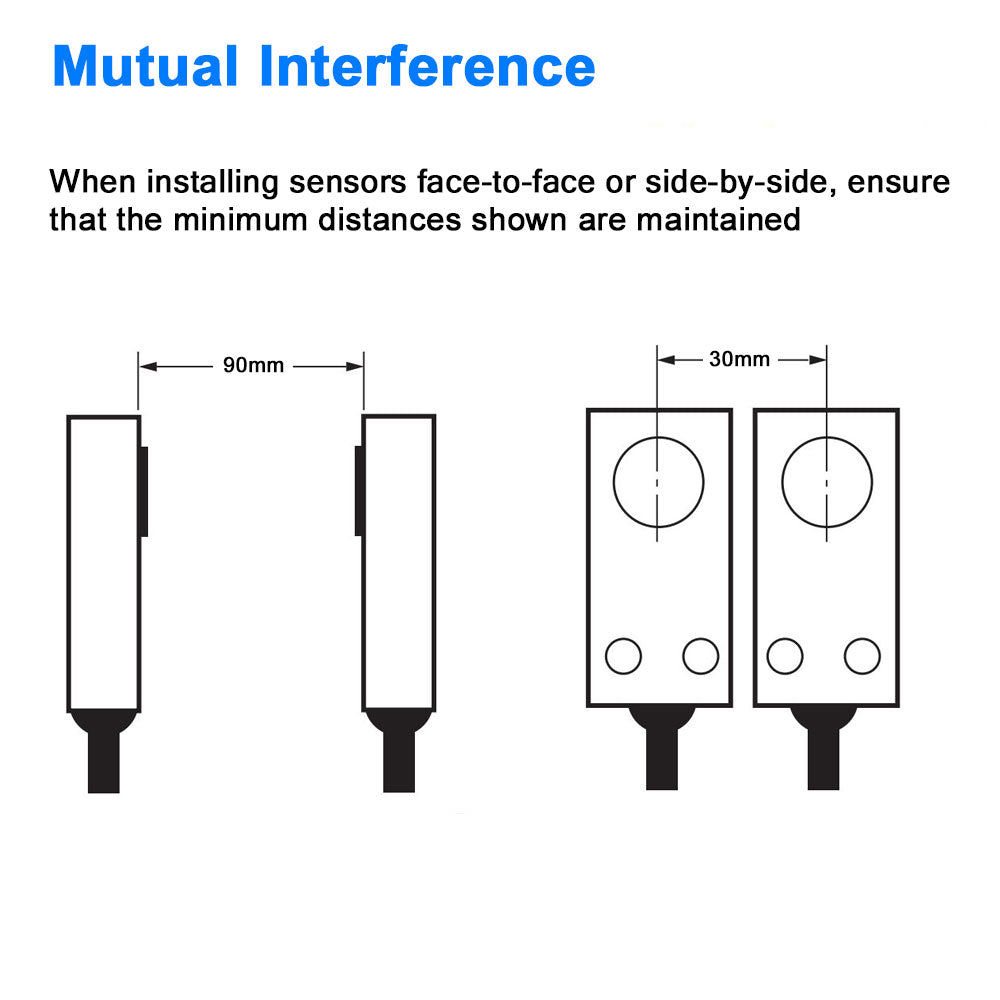

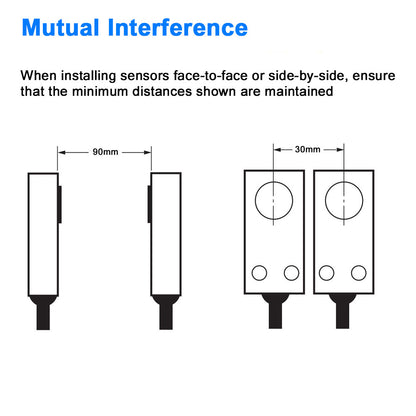

This sensor is compatible with the following connection hardware:
- Wintriss DSI 2 Die Protection Sensor Interface
- HD19 PCB Kit
- HD19 Cable
- HDP 4-port die-mounted junction box
- HDP 8-port die-mounted junction box
- QDP Kit
- QDP Cables
You can also use the standard sensor connector to connect to the front panel of the Wintriss DSI 2.
These sensors can be used with the following Wintriss Controllers:
This sensor may also be compatible with some legacy Wintriss products. Contact the factory for details.
