Proximity Sensor for Non Ferrous Metals - 8 mm Diameter, 2 mm Range - Sensor Head Only
Proximity Sensor for Non Ferrous Metals - 8 mm Diameter, 2 mm Range - Sensor Head Only
Regular price
$258.00 USD
Regular price
Sale price
$258.00 USD

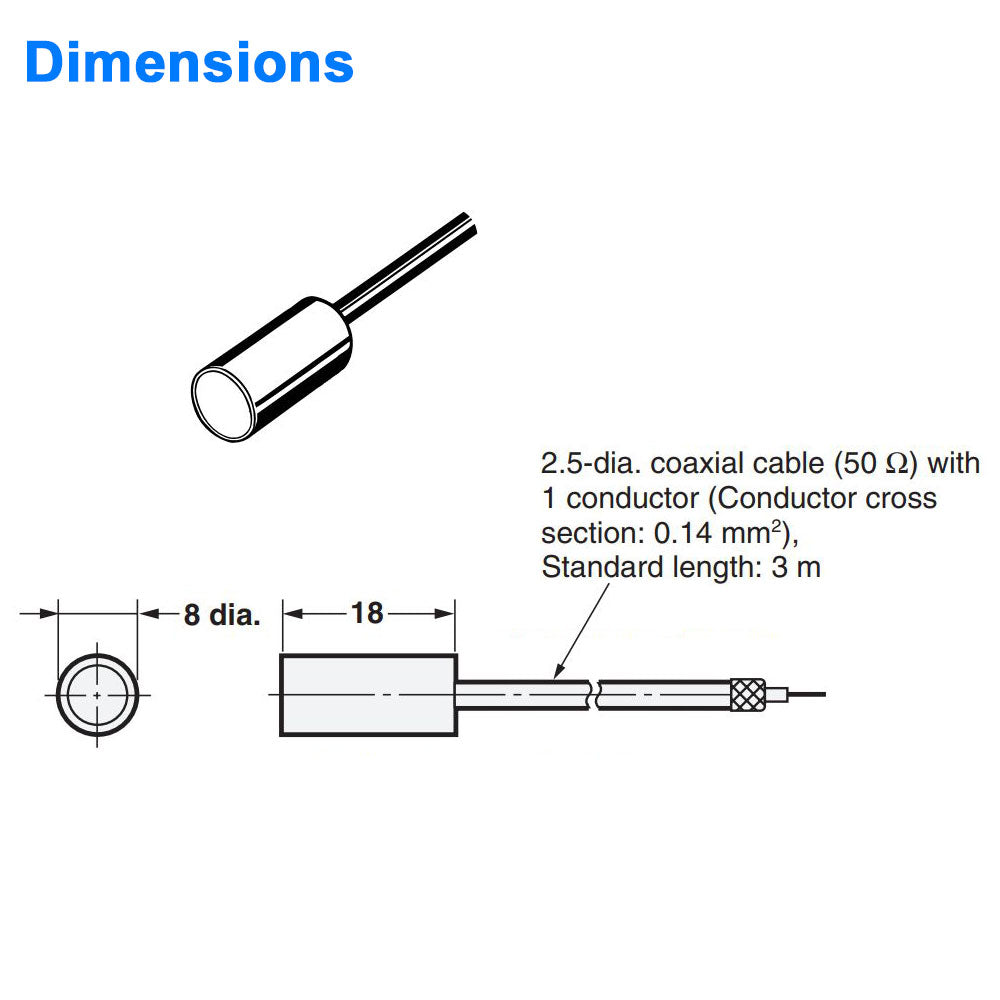

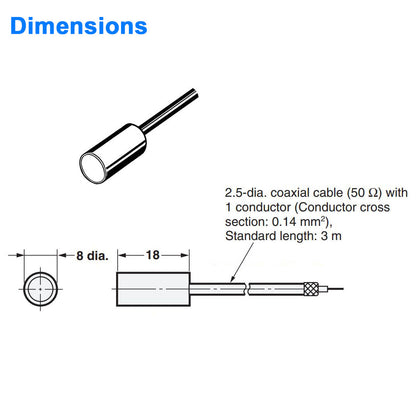

This unthreaded 8mm diameter tubular-barrel proximity sensor works in conjunction with amplifier Part Number 2318901 to detect aluminum, brass, copper, and other non-ferrous metals at a distance of up to 2mm.
This tubular-barrel proximity sensor head features a 3m cable and an IP67 environmental rating.
NOTE: This sensor head requires amplifier Part# 2318901.
| Specifications | |

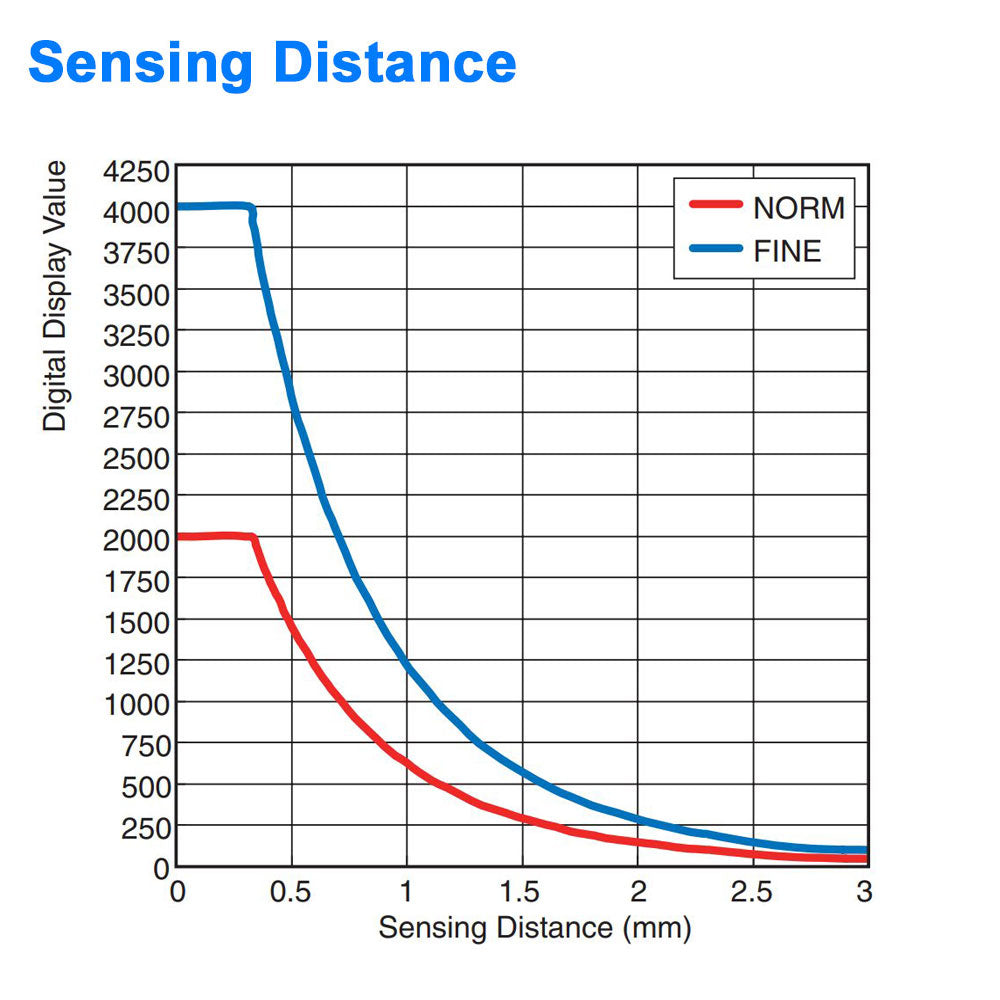

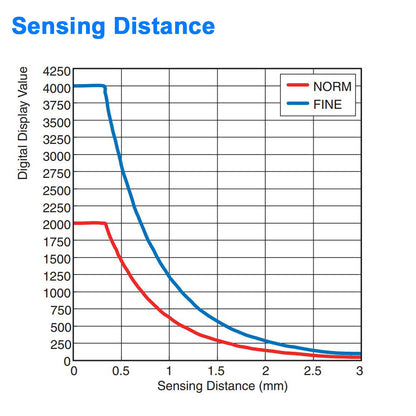

| Stable sensing distance | 0 to 2 mm |
| Differential travel - w/Amp in normal mode | 15% max. of sensing distance |
| Differential travel - w/Amp in fine mode | 10% max. of sensing distance |
| Detectable object | Non-ferrous metal |
| Standard sensing object | Aluminum: 8 x 8 x 1 mm |
| Response frequency | 40 Hz min. with Amplifier Unit in FINE mode 100 Hz min. with Amplifier Unit in NORM mode |
| Ambient temperature range | Operating:-10 to 55°C, Storage: -25 to 70°C (with no icing or condensation) |
| Ambient humidity range | Operating and Storage: 35% to 95% (with no condensation) |
| Temperature Influence - 0 to 40°C | +/-10% max. of sensing distance at 23°C |
| Vibration resistance | Destruction: 10 to 500 Hz, 2-mm double am- plitude or 150 m/s/2 for 2 hours each in X, Y, and Z directions |
| Shock resistance | Destruction: 500 m/s/s 3 times each in X, Y, and Z directions |
| Degree of protection | IEC 60529 IP67 |
| Connection method | High-frequency coaxial cable, Standard cable length: 3 m |
| Weight (packed state) | Approx. 35 g |
| Case | Stainless steel |
| Sensing surface | Heat-resistant ABS |
| Cable | Soft PVC |
