Proximity Sensor for Non Ferrous Metals - Flat Package, 3 mm Range - Sensor Head Only
2318802
Regular price
$258.00

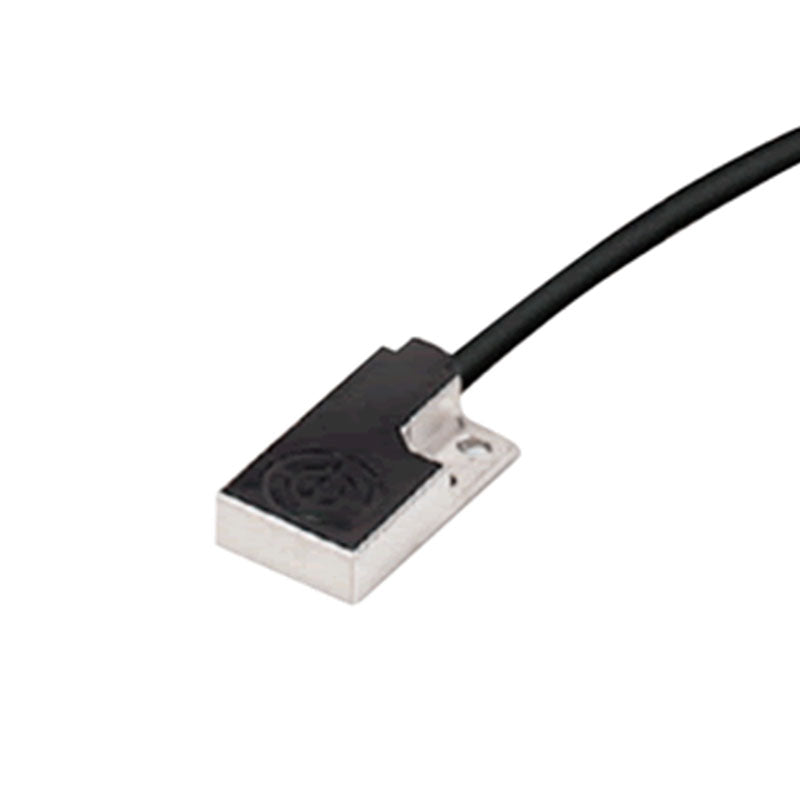

This low-profile, flat mount die protection proximity sensor works in conjunction with amplifier Part Number 2318901 to detect aluminum, brass, copper, and other non-ferrous metals at a distance of up to 3mm.
This die protection sensor head features a 3m cable and an IP67 environmental rating.
NOTE: This sensor head requires amplifier Part# 2318901.
| Specifications | |

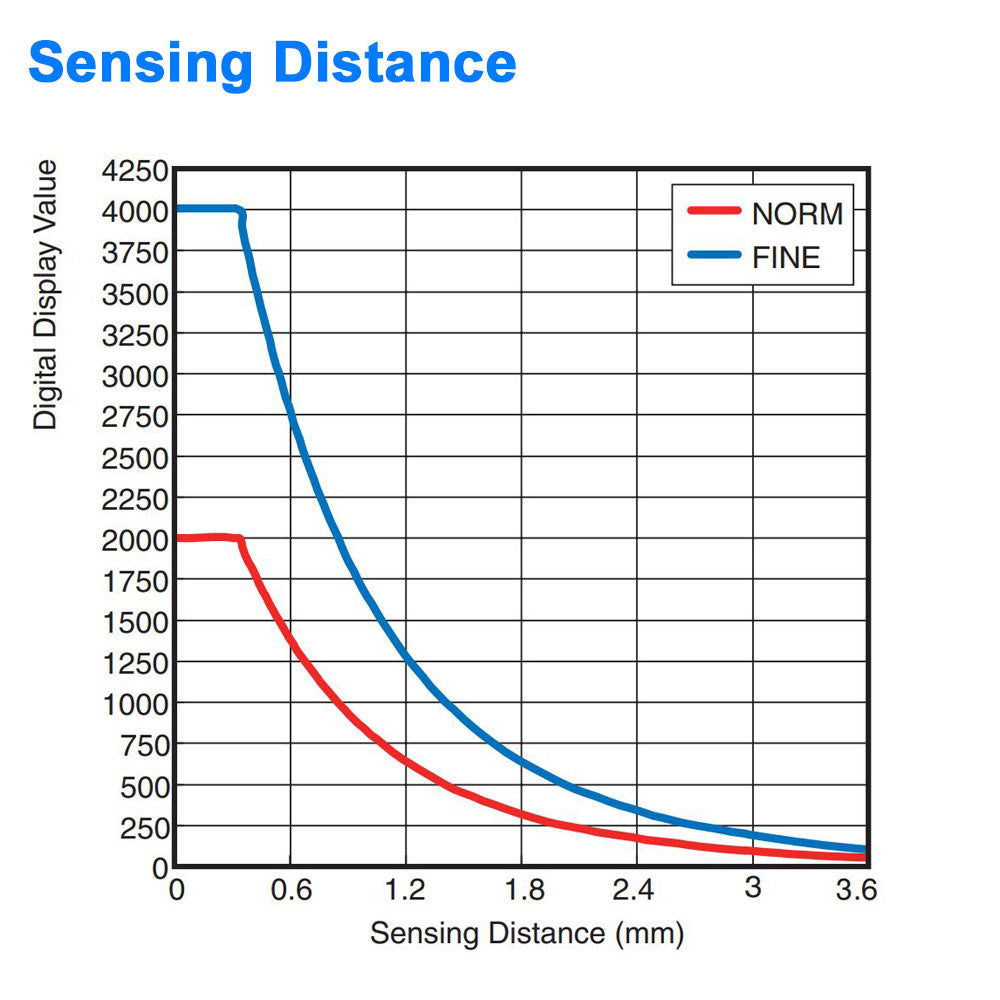

| Stable sensing distance | 0 to 3 mm |
| Differential travel - w/Amp in normal mode | 15% max. of sensing distance |
| Differential travel - w/Amp in fine mode | 10% max. of sensing distance |
| Detectable object | Non-ferrous metal |
| Standard sensing object | Aluminum: 12 x 12 x 1 mm |
| Response frequency | 40 Hz min. with Amplifier Unit in FINE mode 100 Hz min. with Amplifier Unit in NORM mode |
| Ambient temperature range | Operating:-10 to 55°C, Storage: -25 to 70°C (with no icing or condensation) |
| Ambient humidity range | Operating and Storage: 35% to 95% (with no condensation) |
| Temperature Influence - 0 to 40°C | +/-10% max. of sensing distance at 23°C |
| Vibration resistance | Destruction: 10 to 500 Hz, 2-mm double amplitude or 150 m/s/2 for 2 hours each in X, Y, and Z directions |
| Shock resistance | Destruction: 500 m/s/s 3 times each in X, Y, and Z directions |
| Degree of protection | IEC 60529 IP67 |

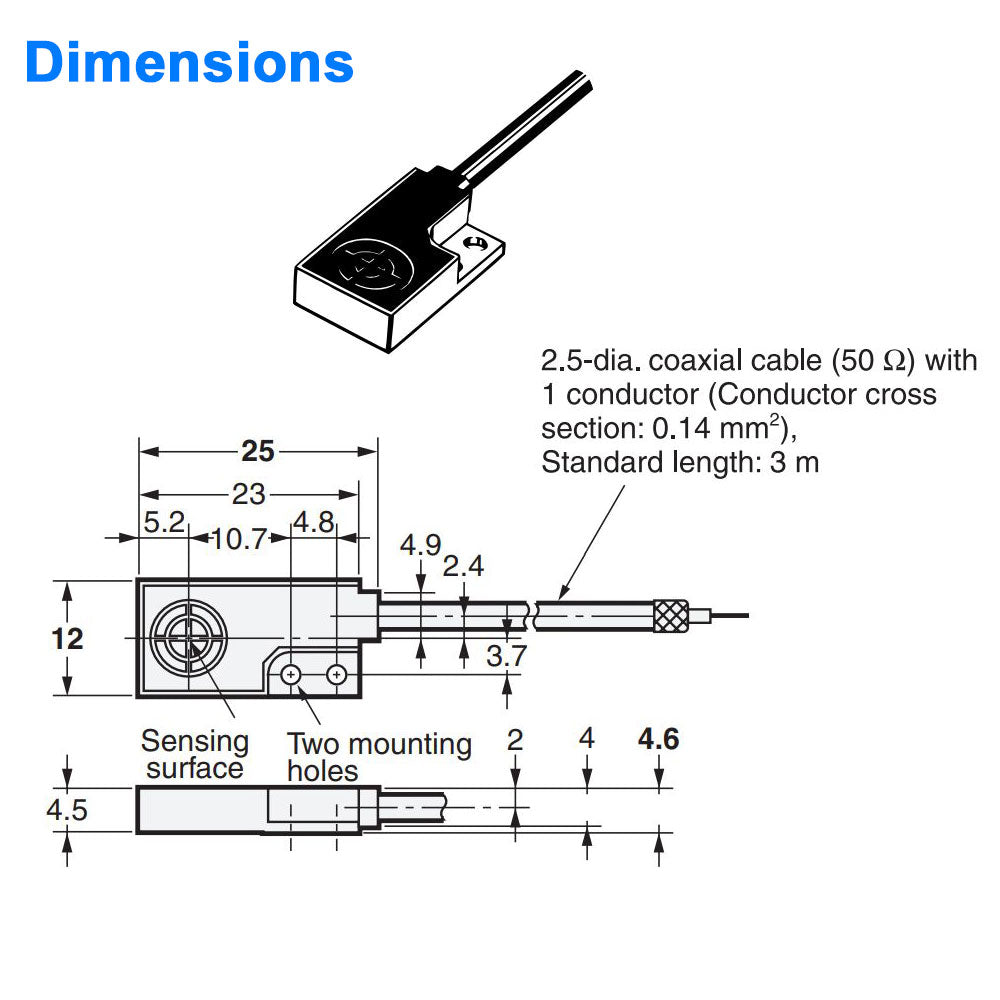

| Connection method | High-frequency coaxial cable, Standard cable length: 3 m |
| Weight (packed state) | Approx. 35 g |
| Case | Zinc die-cast |
| Sensing surface | Heat-resistant ABS |
| Cable | Soft PVC |
| Mounting screws | Zinc-plated steel |
