Sensor Connector (for DSI 2 front Panel)
The Wintriss Store

Sensor Connector (for DSI 2 front Panel)

DA47397
Regular price $52.00 $0.00 Unit price per

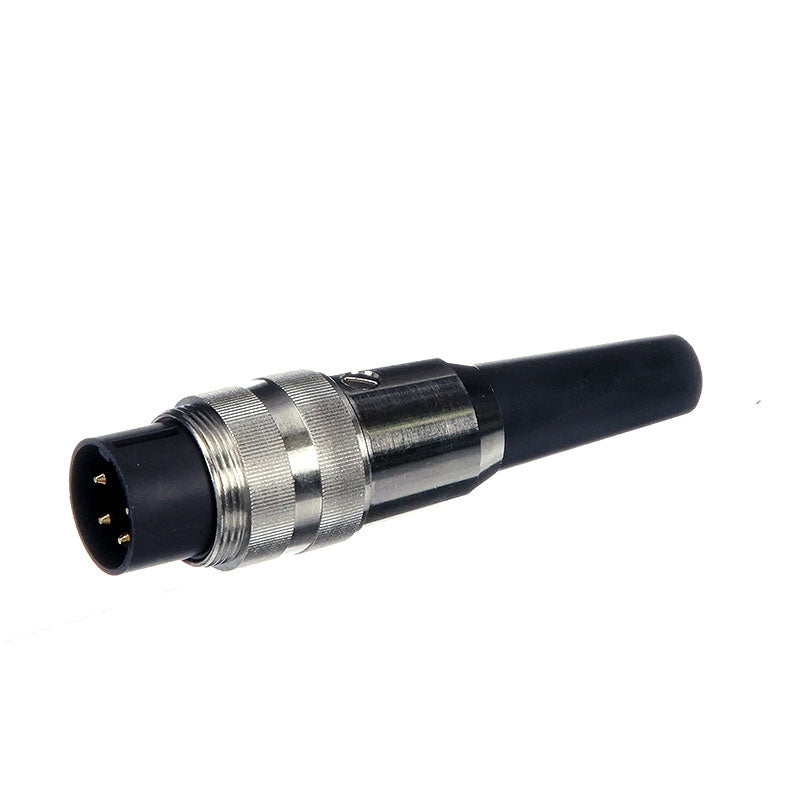

The SV-40 Male connector is used when you want to connect an individual sensor to the DSI-2 front panel.  These connectors should be soldered to the sensor cable end.



The sensor wiring is as follows:

Pin #1 - +24V Sensor Power (Brown wire)

Pin #2 - Power Return/Ground (Blue wire)

Pin #3 - Sensor Signal Wire (Black or white wire)
