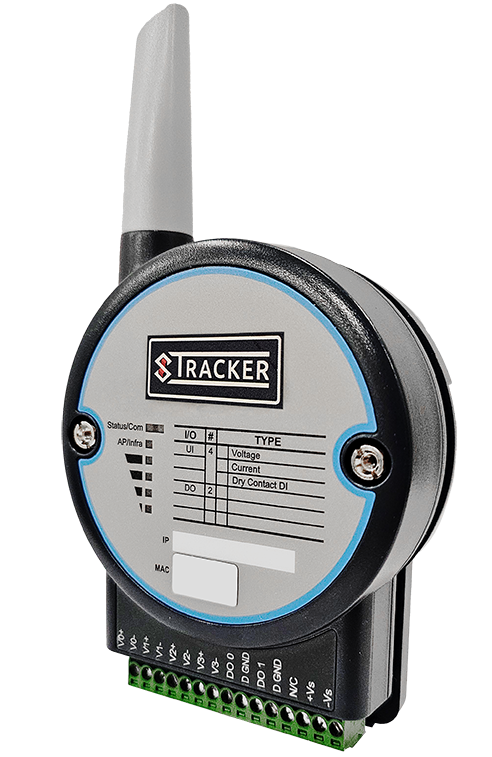

ShopFloorConnect Tracker

The SFC Tracker is the most economical way to automatically collect production data from your machines.

The ShopFloorConnect Tracker is a wireless machine monitor that can be installed on any machine or production line to track machine parameters such as run time, idle time, production counts, production rate, uptime efficiency, temperature, pressure, humidity, and more.

The most outstanding trait of the SFC Tracker is its versatility. It features 4 inputs that can be configured to accept input from a variety of digital or analog signals.

Features:

• Wirelessly connects any machine to ShopFloorConnect
• Collects data automatically with no operator input required
• Significantly lower cost than comparable devices
• Four configurable inputs for digital or analog signals (input types are listed below)

Specifications:

INPUT POWER:

• 2.5 W @ 24 VDC

INPUT CONFIGURATIONS:

• Digital (NPN, or dry contact closure to ground) for cycle, parts, or scrap counters
• Digital (NPN, or dry contact closure to ground) for machine Running/Idle
• Analog voltage (±150mV, ±500mV, ±1V, ±5V, ±10V, 0-150mV, 0-500mV, 0-1V, 0-5V, or 0~10V) for process parameter monitoring with user-supplied sensors
• Analog Current (0~20mA, 4~20mA, ±20mA) for process parameter monitoring with user-supplied sensors. Current input requires a user-supplied 120Ω resistor.
