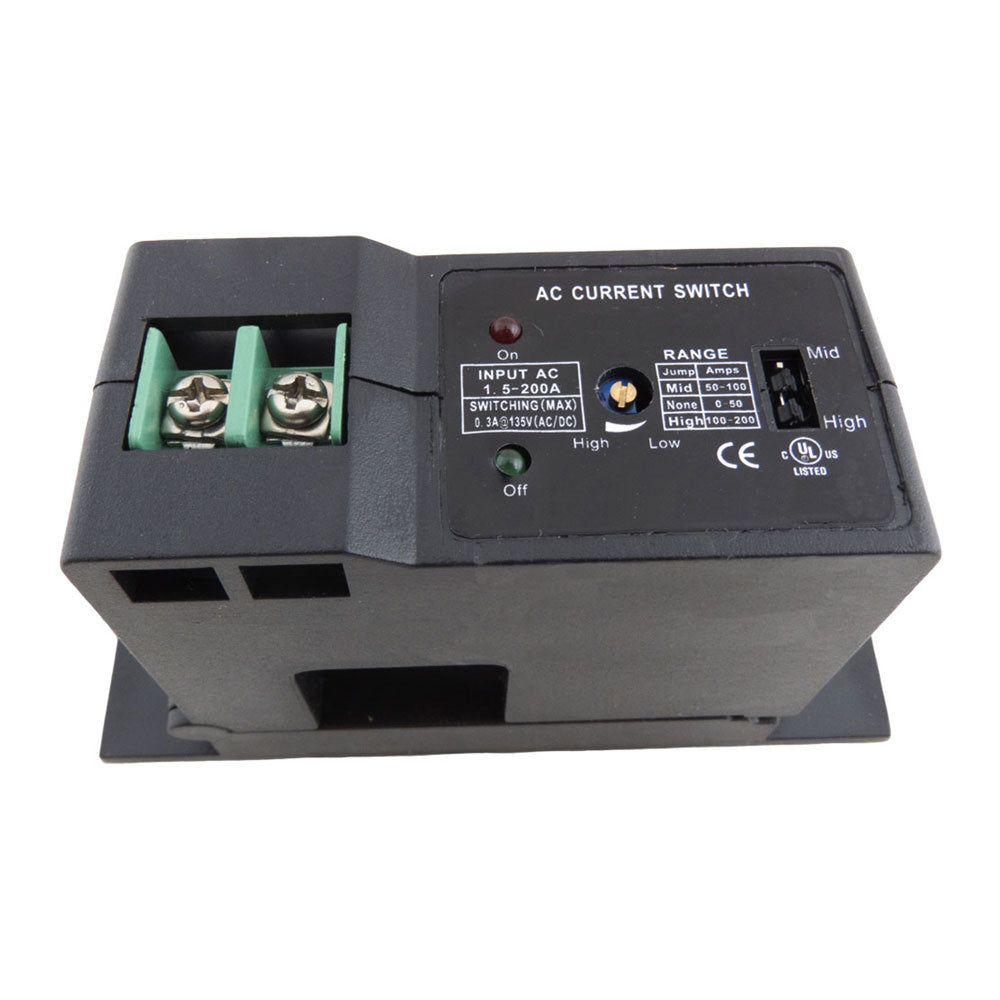

Split Core Current Switch w-Adj. Setpoint (Dry contact output)
2320101
Regular price
$90.00

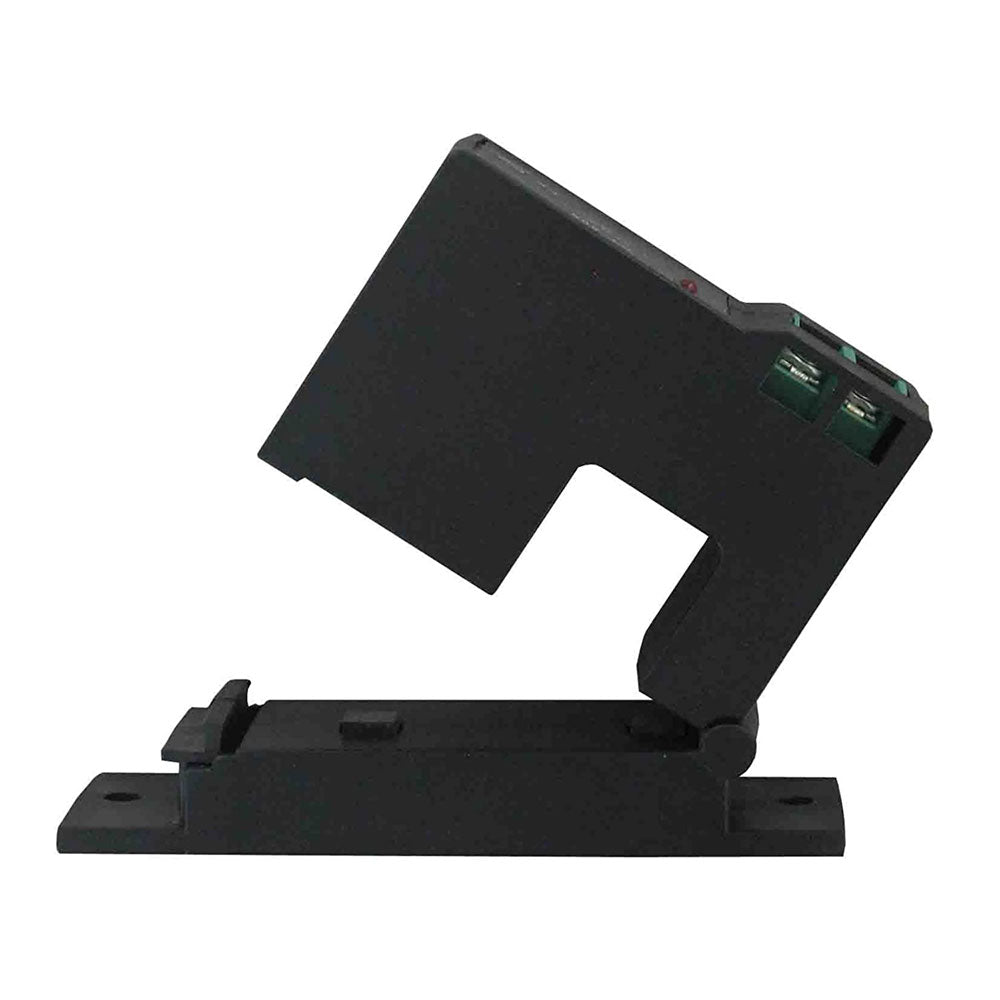

This split core current switch is ideal for monitoring the operating status of fans, pumps, and motors. These self-powered current switches can be hung on or tie-wrapped directly to cables or wires. The split core allows it to be installed without disconnecting cables. LED indicators provide a visual confirmation that the current is flowing through the switch. This split core current switch utilizes a potentiometer to easily adjust the setpoint (the current at which the switch will turn “On”).
Specifications:
| Amperage Range: | 0 to 200 A AC |
| Minimum Setpoint: | 1.5 A |
| Output Type: | Dry contact |
| Maximum Switch Rating: | 0.3 A @ 135 VAC/DC |
| LED Indicators | Green "On", Red "Off" |
| Power Requirements: | None, self-powered. |
| Temperature Limits: | 22 to 158 Deg. F (-30 to 70 Deg. C) |
| Humidity Limits: | 0 to 95% (non-condensing) |
| Isolation Voltage: | 2000 V |
| Frequency: | 40 to 400 Hz |
| Enclosure Rating: | UL, 94 V-O flammability |
| Housing Material: | ABS plastic |
| Approvals: | CE, UL |
